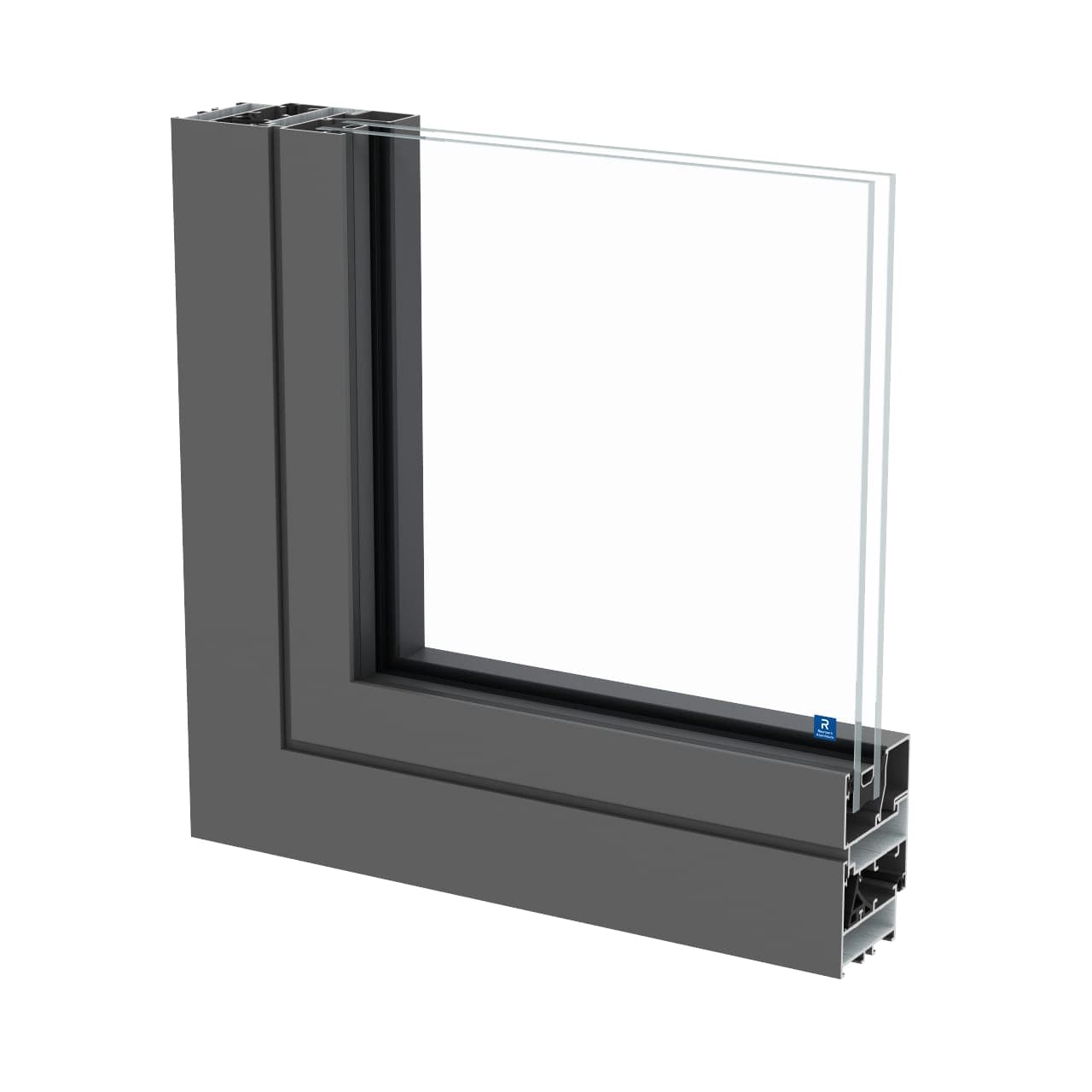

ConceptSystem 59Pa
Ideal for warm climates
- Frame depth
- 50mm
- Glazing thickness (vent)
- 4–35mm
- Wind resistance class
- C5
01 — Overview
Overview
ConceptSystem 59 Parallel (Pa) offers a range of aluminium profiles designed to deliver quality windows at a competitive price. Its functional design suits any building style.
As a non-insulated system it is intended for warm climates, with a balanced price–performance–quality ratio and minimised visible heights for fixed and opening windows.
02
Performance
- 01
Non-insulated
Designed for warm climates.
- 02
Slim sightlines
Minimised visible heights on fixed and opening windows.
- 03
Options
Concealed hinges, hidden drainage, insect screen, bullet resistance.
03
Specifications
Performance
EX-06.01- Air permeability
- Class 4 (600 Pa)
- Water tightness
- Class E750 (750 Pa)
- Wind resistance
- Class C5 (2000 Pa)
- Acoustics Rw (C;Ctr)
- 44 (-2;-4) dB
Dimensions
EX-06.02- Frame depth
- 50 mm
- Vent depth
- 59 mm
- Min. frame + vent width
- 85 mm (inward opening)
- Glazing rebate height
- 25 mm
- Glazing thickness (vent)
- 4–35 mm
- Element height
- 500–2400 mm
04
Documents

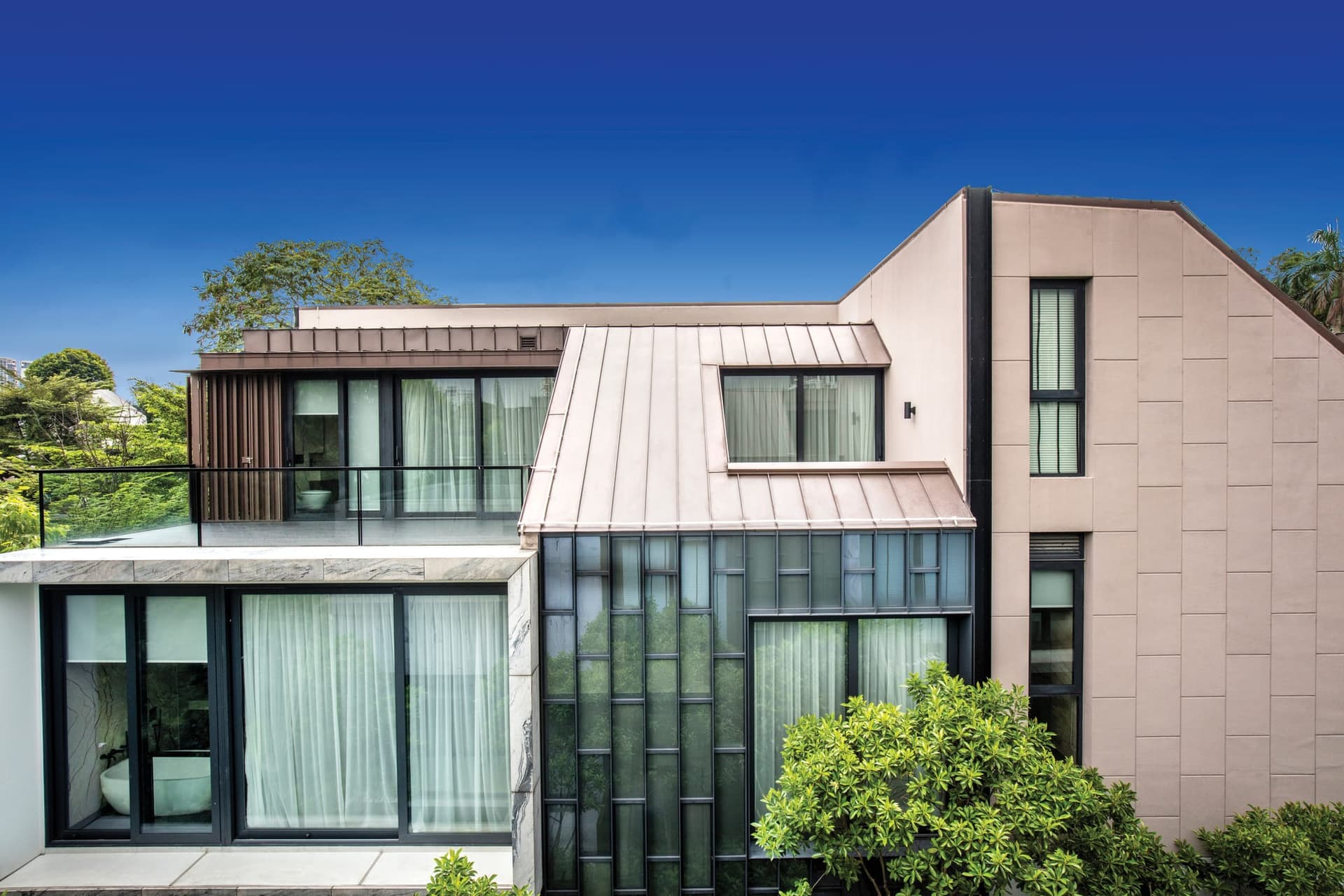

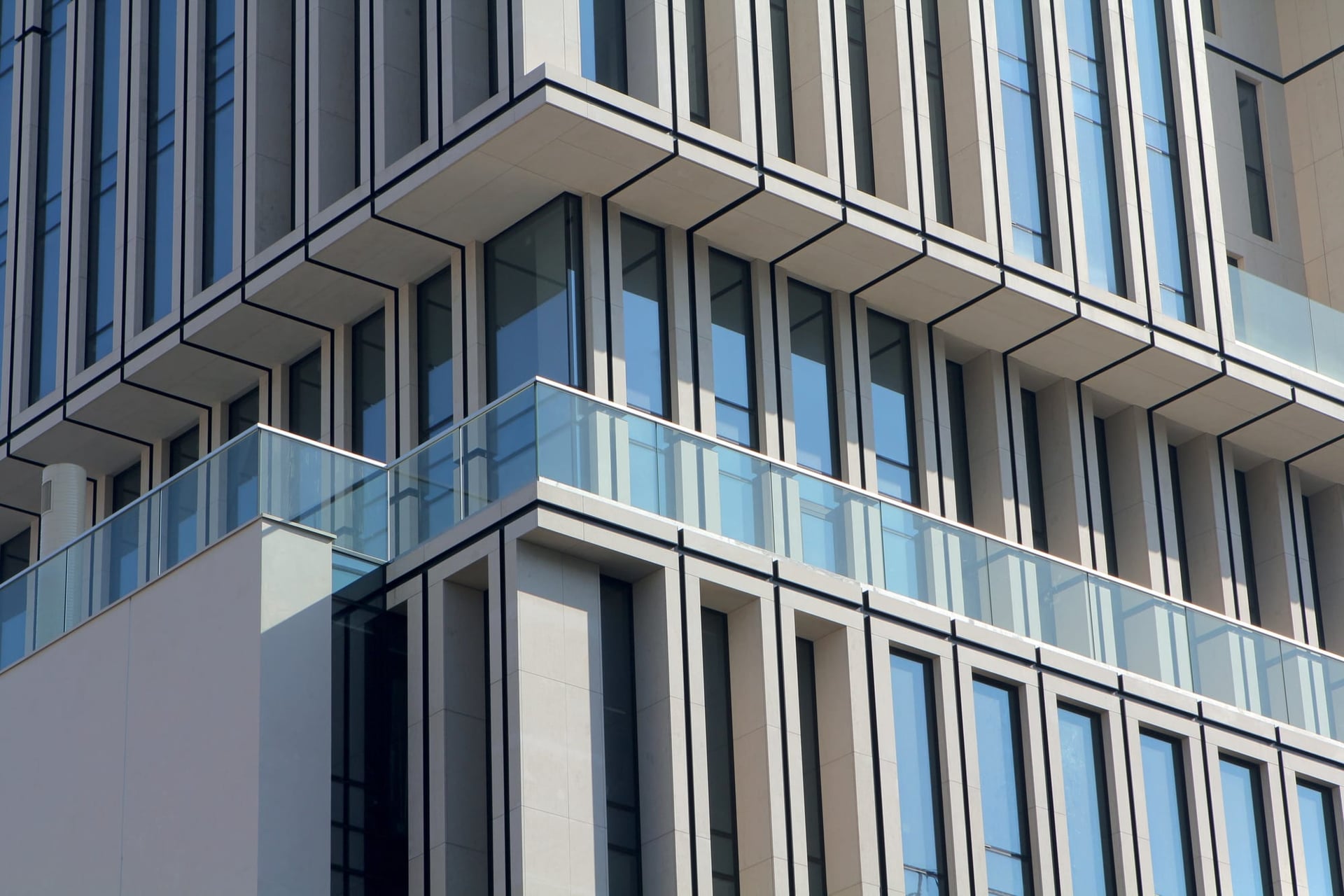

Gallery
01 / 02
02 / 02
Sheet 09 — Enquiry
Specify ConceptSystem 59Pa.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
