IN-04 — Sanitary Ware

Single Pieces

WCs, urinals and squatting pans

Groups: 7
Wall-hung WCs: 7
Squatting pan: 600 × 500mm

01 — Overview

Single pieces complete the range for projects that need individual items rather than coordinated sets. They include an under-counter basin, compact single basins, seven wall-hung WCs (two of them rimless), back-to-wall WCs and floor-standing WCs with floor or wall outlet.

For commercial and public washrooms there is a top-inlet urinal with a matching divider, and two rim-flush squatting pans with rear or top inlet.

Most WCs are also available with an integrated bidet spout under their own code.

Performance

01

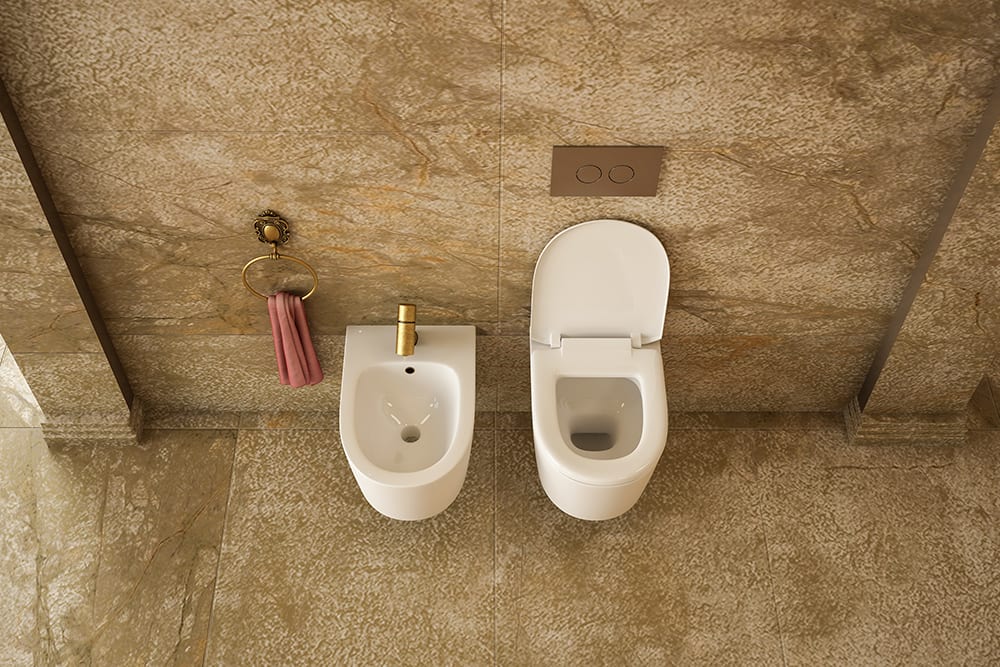

Wall-hung WCs
Seven models, including rimless versions.
02
Back-to-wall WCs
Full and semi back-to-wall WCs with cisterns.
03

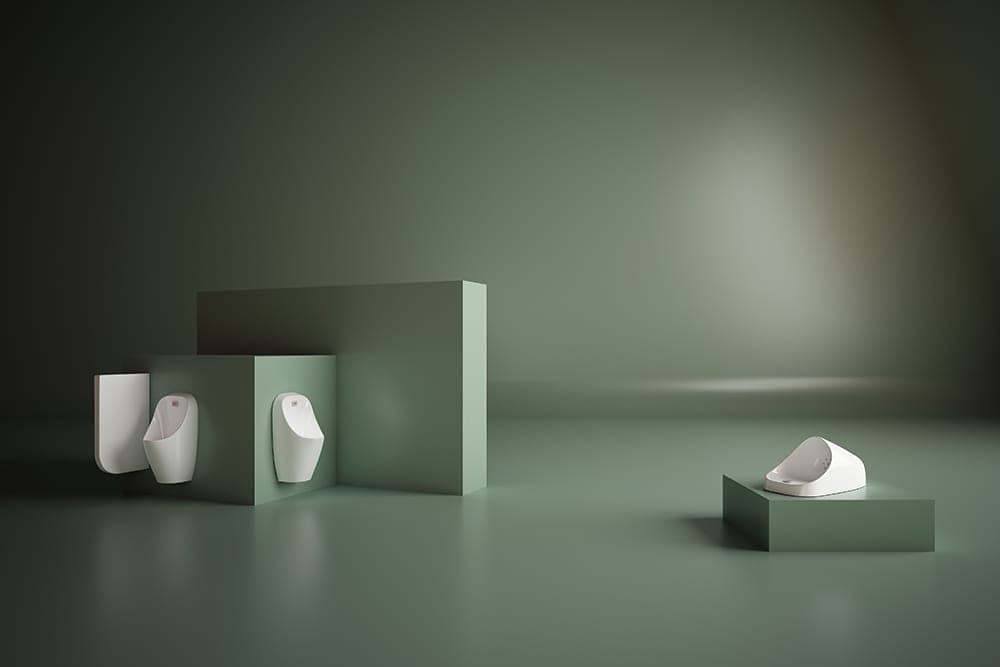

Urinal and divider
Top-inlet urinal with ceramic divider.
04
Squatting pans
Rim-flush pans with rear or top inlet.

Applications

Public and commercial washrooms
Schools and transport hubs
Industrial facilities
Residential projects

Specifications

Collections

IN-04.01

Models: Under-counter basin, Wall-hung WCs, Back-to-wall WCs, Single basins, Single WCs, Urinals & dividers, Squatting pans

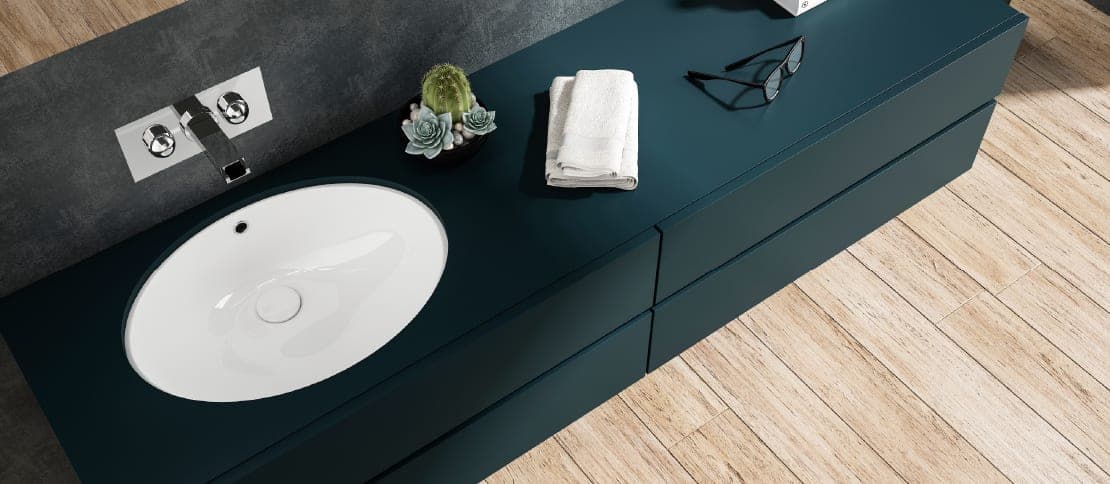

Under-counter basin

IN-04.02

4101 · Washbasin, 50 cm: 500 × 410 × 200 mm · 7.7 kg (±5 %) · 16 pcs/pallet

Wall-hung WCs

IN-04.03

5377 · Wall-hung WC: 490 × 360 mm · 24.3 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5378
5387 · Wall-hung WC: 500 × 350 mm · 24.9 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5388
5327 · Wall-hung WC: 530 × 360 mm · 18.1 kg (±5 %) · 18 pcs/pallet · bidet-spout version 5328
5667 · Wall-hung WC: 525 × 350 mm · 25.9 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5668
5347 · Wall-hung WC: rimless · 410 × 550 × 400 mm (box) · 21.16 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5348 · Colours: Sahara, Matt Black, Matt White, Anthracite
5437 · Rimless wall-hung WC: 410 × 550 × 400 mm (box) · 29.80 kg (±5 %) · 21 pcs/pallet · bidet-spout version 5438
5337 · Wall-hung WC: 410 × 550 × 400 mm (box) · 23.15 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5338

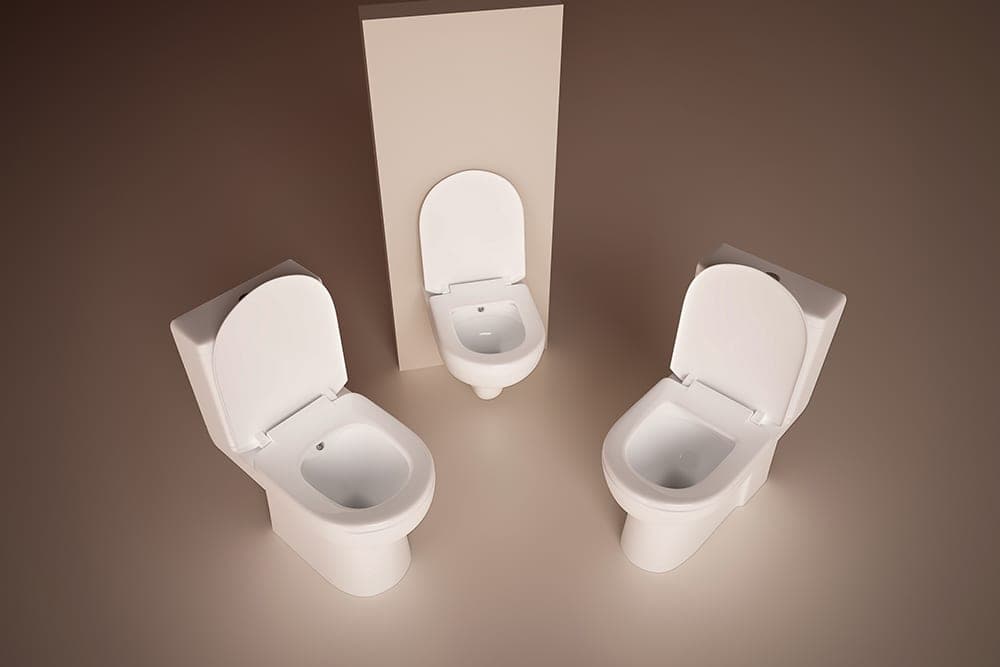

Back-to-wall WCs

IN-04.04

5340+5580 · Back-to-wall WC + cistern: 625 × 360 mm · 26.3 kg (±5 %) · 14 pcs/pallet · bidet-spout version 5345 · 5580 cistern 145 × 360 × 360 mm · 13.8 kg (±5 %) · 54 pcs/pallet
5320+5550 · Semi back-to-wall WC + cistern: 30.50 kg (±5 %) · 18 pcs/pallet · bidet-spout version 5325 · cistern 12.90 kg (±5 %) · 54 pcs/pallet
5360+5550 · Back-to-wall WC + cistern: 640 × 355 mm · 28.4 kg (±5 %) · 14 pcs/pallet · bidet-spout version 5365 · 5550 cistern 140 × 370 × 365 mm · 12.8 kg (±5 %) · 54 pcs/pallet

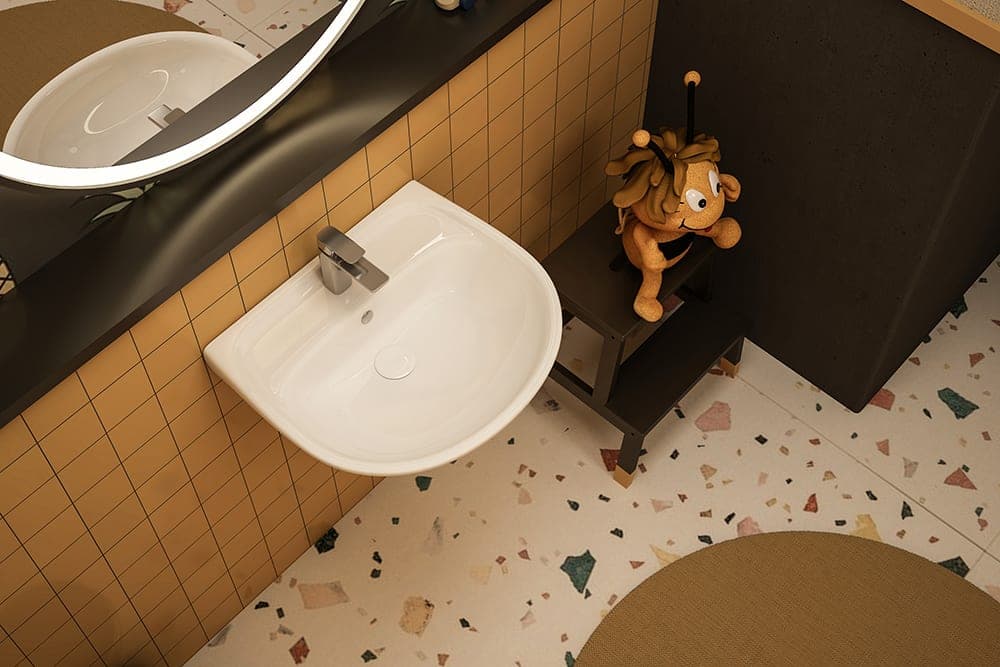

Single basins

IN-04.05

4000 · Washbasin, 40 cm: 400 × 250 × 150 mm · 5.9 kg (±5 %) · 56 pcs/pallet
4010+5211 · Washbasin + semi-pedestal, 46 cm: 460 × 370 × 155 mm · 9.5 kg (±5 %) · 48 pcs/pallet · 5211 semi-pedestal 300 × 255 × 265 mm · 7 kg (±5 %) · 60 pcs/pallet
4020+5211 · Washbasin, 50 cm: 500 × 400 × 165 mm · 11.2 kg (±5 %) · 42 pcs/pallet

Single WCs

IN-04.06

4500 · WC, floor outlet: 460 × 360 mm · 17.1 kg (±5 %) · 21 pcs/pallet · bidet-spout version 4505
4530 · WC, wall outlet: 460 × 360 mm · 15.9 kg (±5 %) · 21 pcs/pallet · bidet-spout version 4535

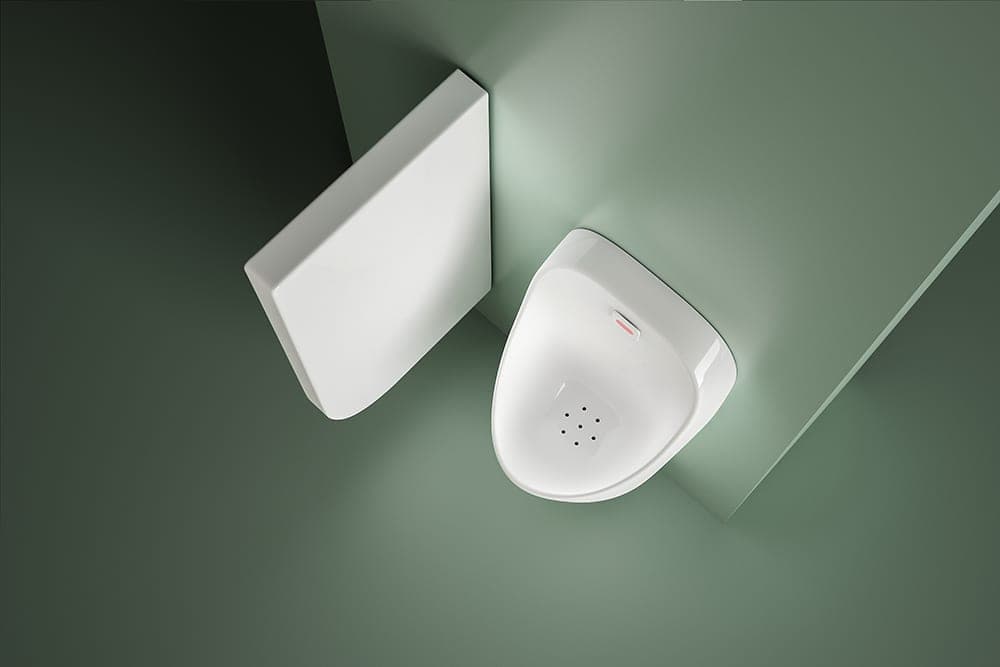

Urinals & dividers

IN-04.07

4411 · Top-inlet urinal: 405 × 330 × 290 mm · 8 kg (±5 %) · 36 pcs/pallet
4490 · Urinal divider: 365 × 605 mm · 10.9 kg (±5 %) · 16 pcs/pallet

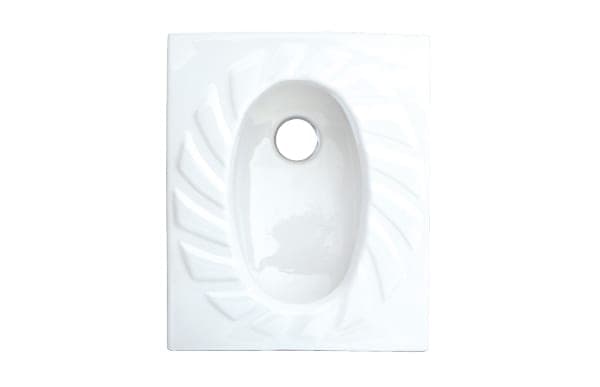

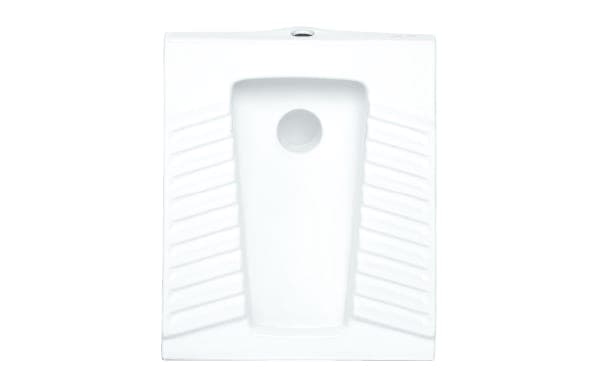

Squatting pans

IN-04.08

4310 · Squatting pan, rim flush: 600 × 500 mm · 17.1 kg (±5 %) · 32 pcs/pallet · 4310 rear inlet
4300 · Squatting pan, rim flush: 600 × 500 mm · 17.1 kg (±5 %) · 34 pcs/pallet · 4300 rear inlet · 4301 top inlet
