IN-04 — Sanitary Ware

Mini Basins

Compact basins for small spaces

Collections: 6
Widths: 40–60cm
Minimum depth: 220mm

01 — Overview

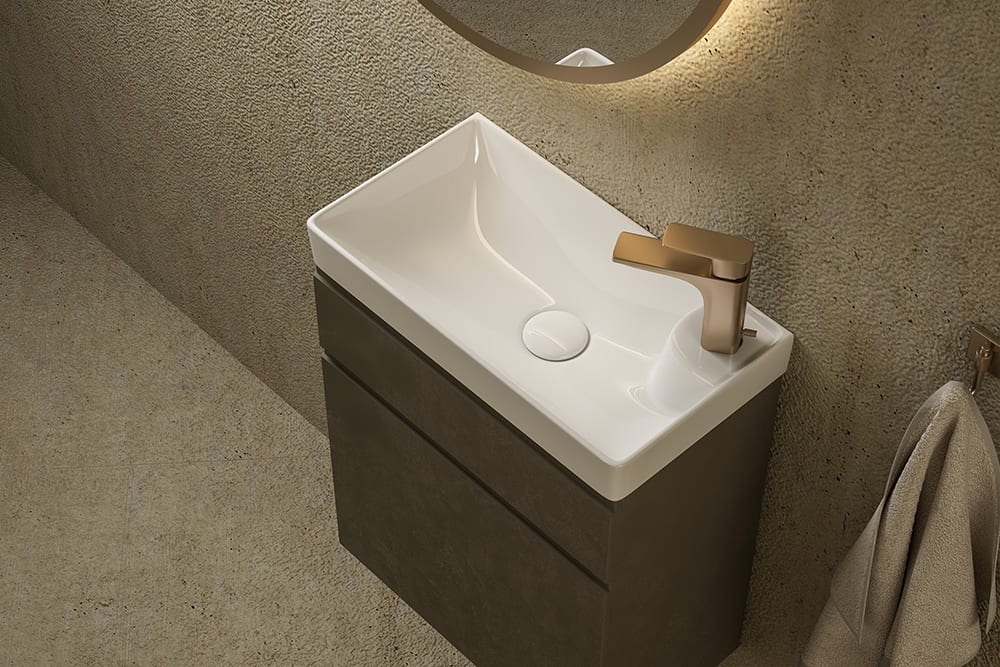

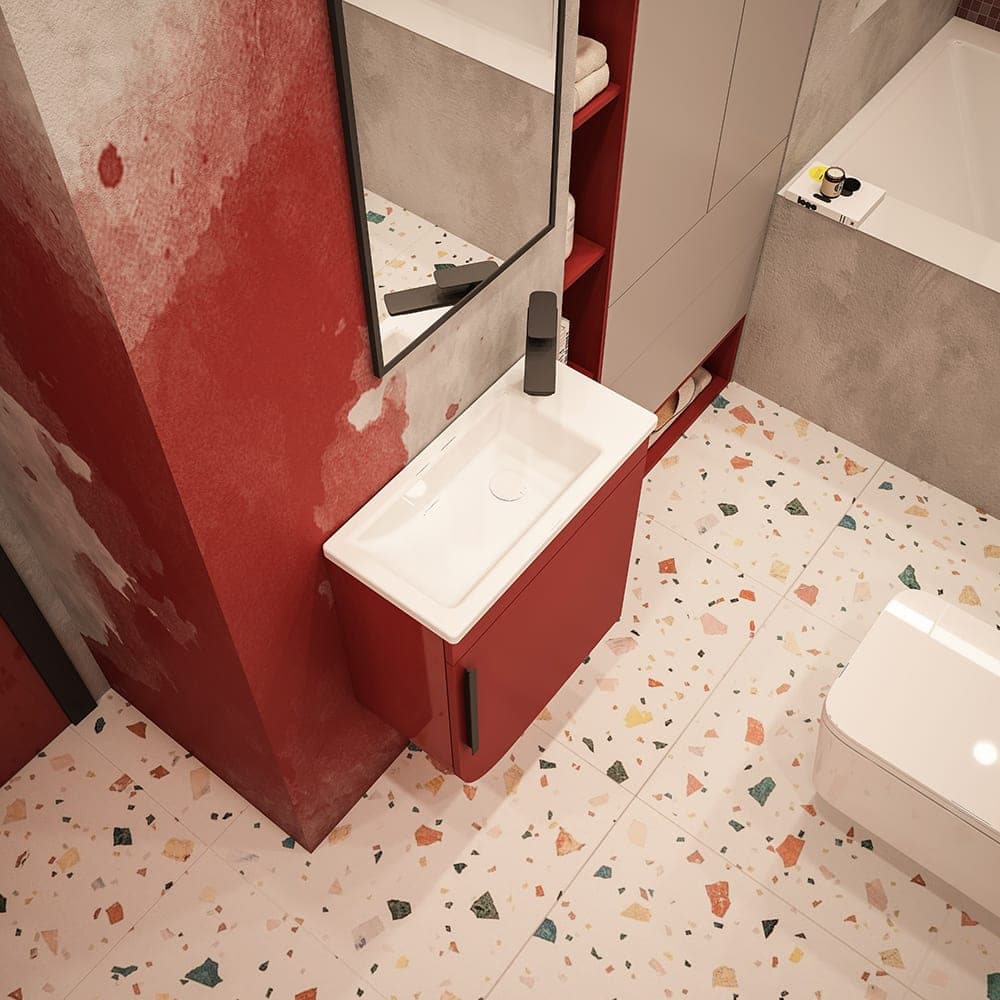

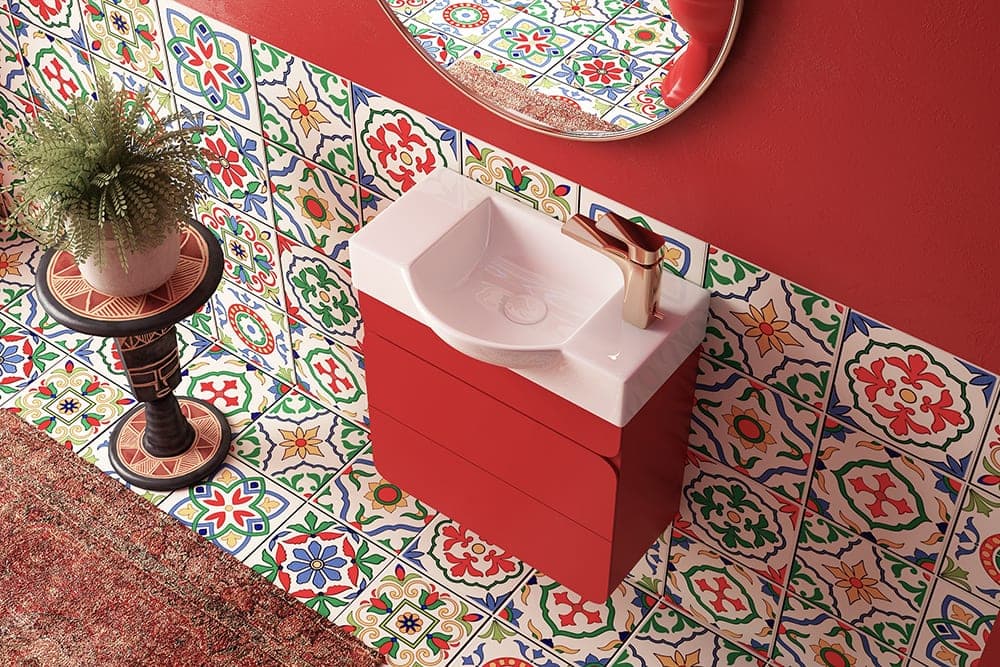

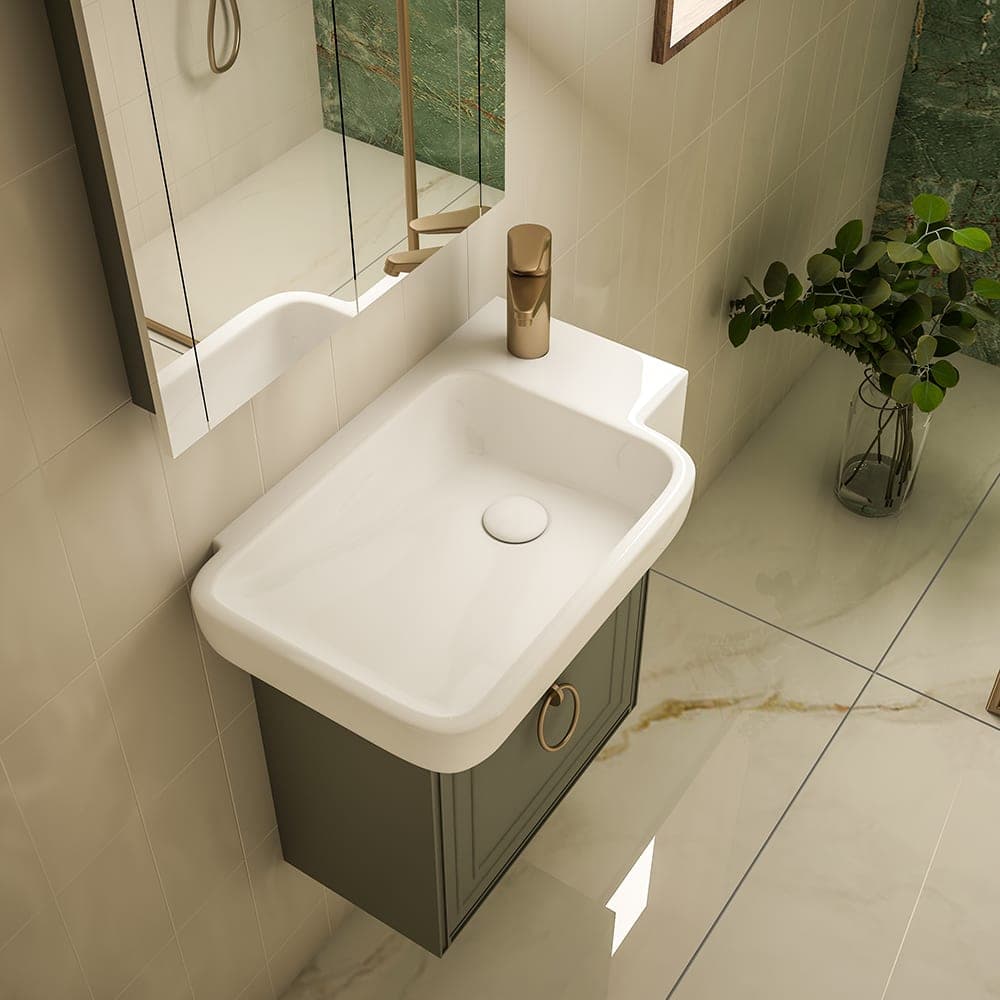

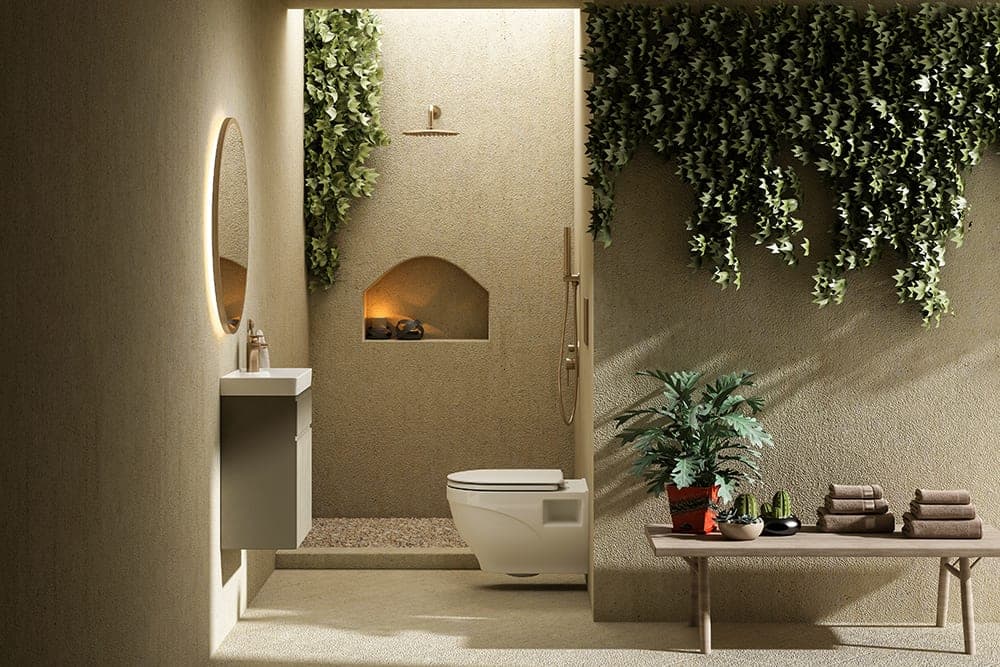

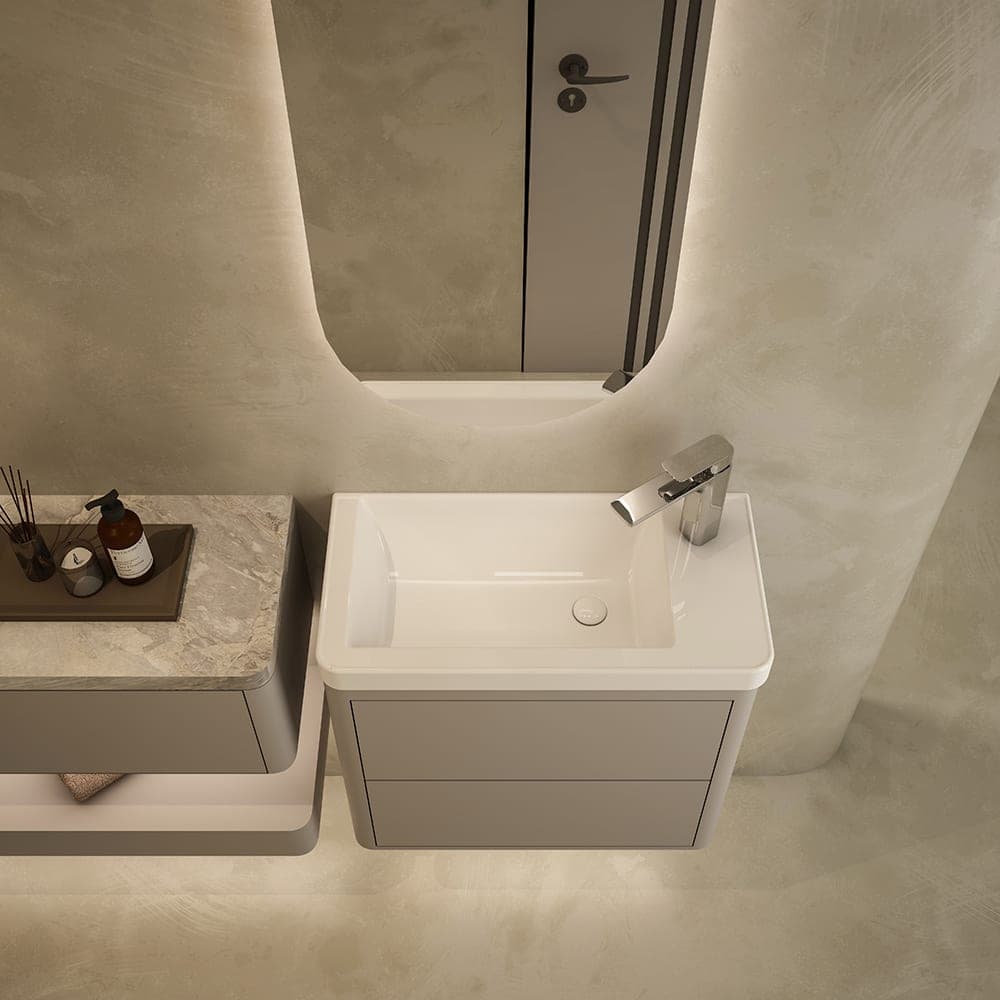

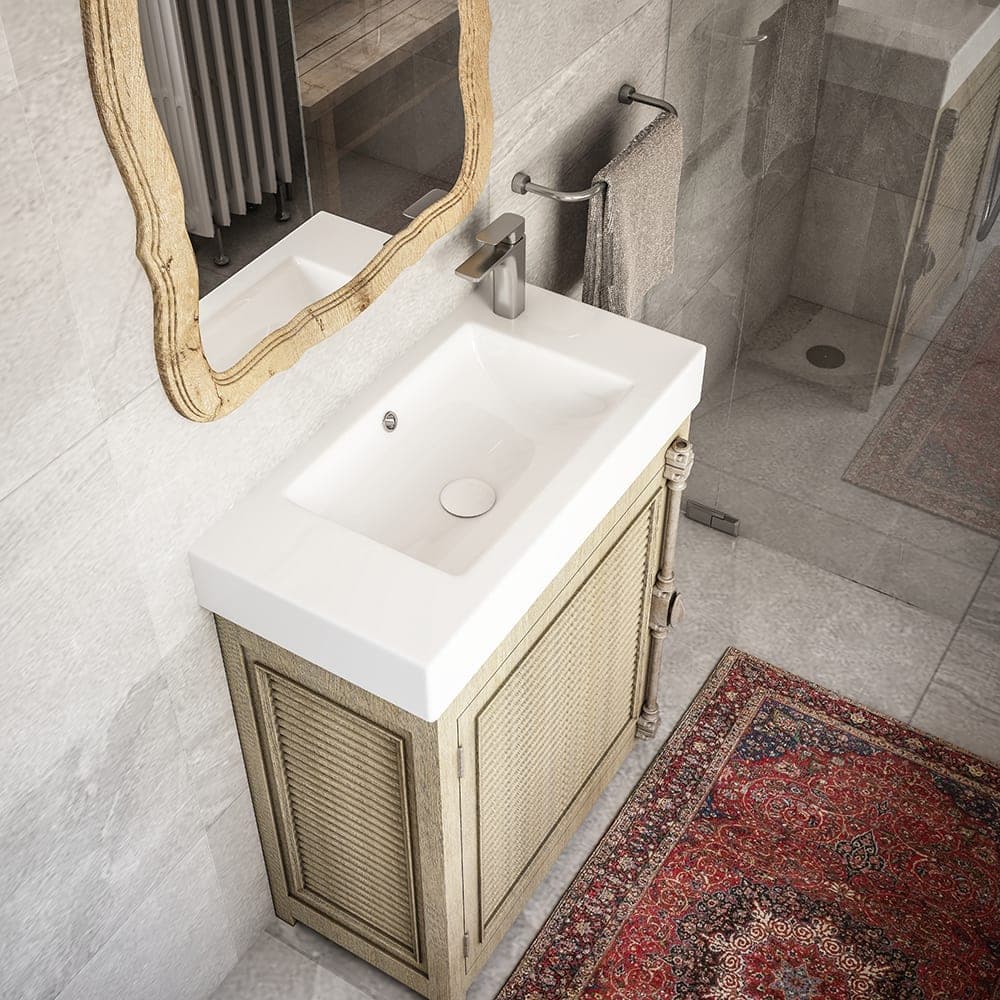

Mini basins bring a full-size washbasin experience into the smallest rooms. Depths start at 220 mm, so even a narrow cloakroom or a corridor washroom can have a proper basin.

Ventidue is the slimmest, at 220 mm deep in 40 and 60 cm widths. Mabel is a 250–300 mm deep trough, and Minos and Litos are each offered in several versions under separate codes. All are supplied in gloss white and can be wall-mounted or set on a compact cabinet.

Codes, dimensions, weights and pallet quantities are published for each version.

Performance

01
Space-saving depths
From 220 mm deep.
02
Several versions
Minos and Litos each come in more than one version.
03
Wall or cabinet
For wall mounting or compact vanity units.
04
Gloss white
Easy-clean glazed surface.

Applications

Guest washrooms and cloakrooms
Small apartments
Offices
Hotel public areas

Specifications

Collections

IN-04.01

Models: Minos, Litos, Mabel, Etna, Ventidue, Viva

Minos

IN-04.02

4757 · Washbasin, 45 cm: 450 × 260 × 100 mm · 0.024 m³ · 8.3 kg (±5 %) · 35 pcs/pallet
4057 · Washbasin, 45 cm: 450 × 260 × 100 mm · 0.024 m³ · 8.3 kg (±5 %) · 35 pcs/pallet
4759 · Washbasin, 40 cm: 225 × 265 × 160 mm (box) · 0.01 m³ · 6.80 kg (±5 %) · 44 pcs/pallet
4059 · Washbasin, 40 cm: 225 × 265 × 160 mm (box) · 0.01 m³ · 7.41 kg (±5 %) · 44 pcs/pallet

Litos

IN-04.03

4779 · Washbasin, 45 cm: 480 × 350 × 165 mm (box) · 0.028 m³ · 9.00 kg (±5 %) · 35 pcs/pallet
4079 · Washbasin, 45 cm: 480 × 350 × 165 mm (box) · 0.028 m³ · 8.74 kg (±5 %) · 35 pcs/pallet
4077 · Washbasin, 55 cm: 570 × 335 × 170 mm (box) · 0.033 m³ · 10.40 kg (±5 %) · 24 pcs/pallet

Mabel

IN-04.04

72550 · Washbasin, 50 cm: 500 × 250 × 130 mm · 0.015 m³ · 8.1 kg (±5 %) · 36 pcs/pallet
73060 · Washbasin, 60 cm: 600 × 300 × 130 mm · 0.02 m³ · 10.4 kg (±5 %) · 30 pcs/pallet

Etna

IN-04.05

81050 · Washbasin, 50 cm: 530 × 305 × 135 mm (box) · 0.022 m³ · 6.71 kg (±5 %) · 36 pcs/pallet
81045 · Washbasin, 45 cm: 480 × 305 × 180 mm (box) · 0.026 m³ · 5.90 kg (±5 %) · 35 pcs/pallet

Ventidue

IN-04.06

2260 · Washbasin, 60 cm: 600 × 220 × 105 mm · 0.019 m³ · 6.9 kg (±5 %) · 40 pcs/pallet
2240 · Washbasin, 40 cm: 400 × 220 × 105 mm · 0.013 m³ · 4.4 kg (±5 %) · 68 pcs/pallet
