IN-04 — Sanitary Ware

Bathroom Sets

Basin, pedestal, WC and cistern

Sets: 5
Basin widths: 46–60cm
Full pedestal height: 700mm

01 — Overview

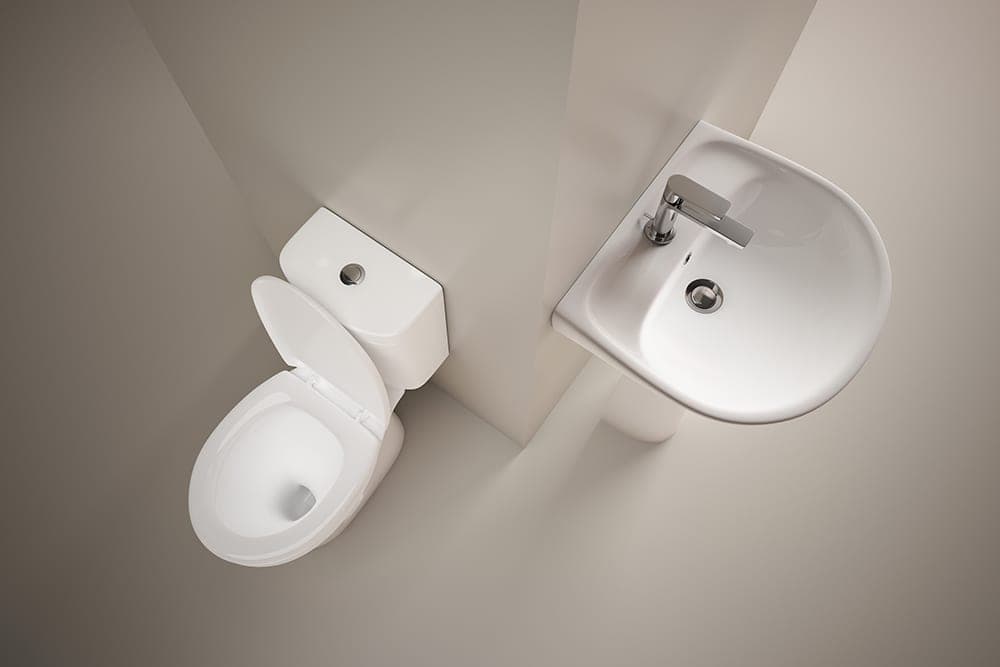

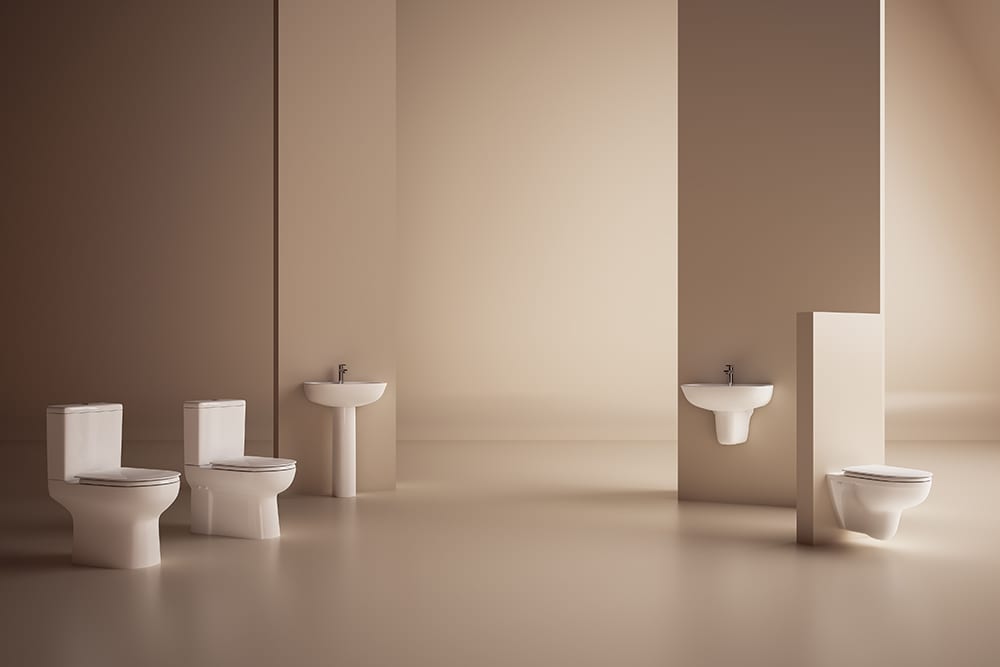

Bathroom sets bring together everything a standard bathroom needs: a washbasin with a full or semi-pedestal, and a matching floor-standing WC with its cistern. They are the practical choice for housing projects, where consistency and simple ordering matter.

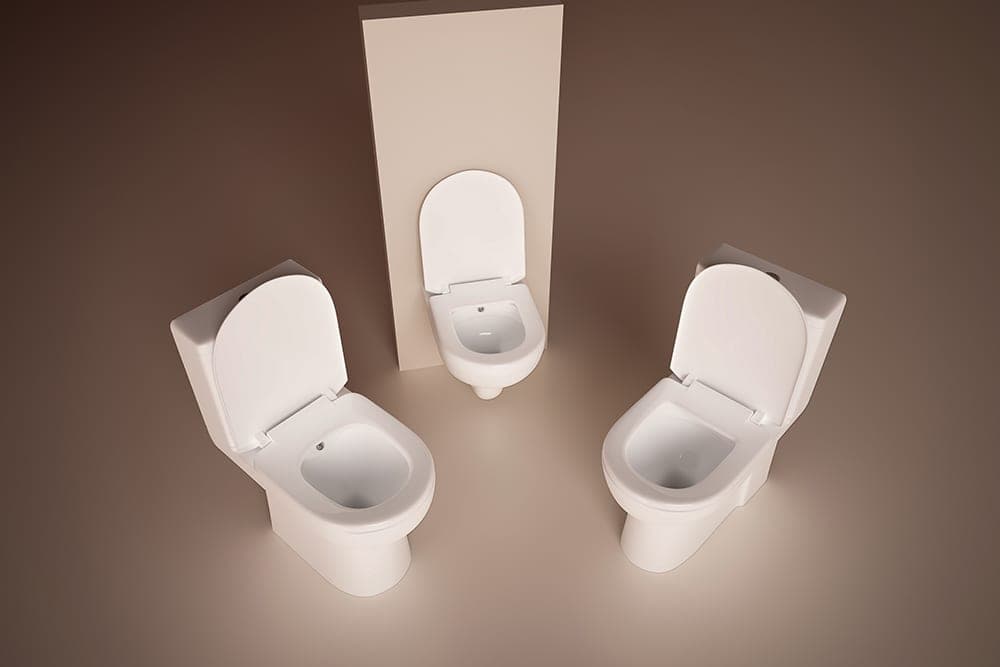

Opal and Sedef offer back-to-wall WCs; Platin offers floor-outlet and wall-outlet WCs; Afacan is a compact 46 cm basin with a floor-outlet WC. The Disabled set pairs a 60 cm basin with a WC for accessible washrooms.

WCs are also available with an integrated bidet spout under their own code.

Performance

01
Complete sets
Basin, pedestal, WC and cistern that match.
02

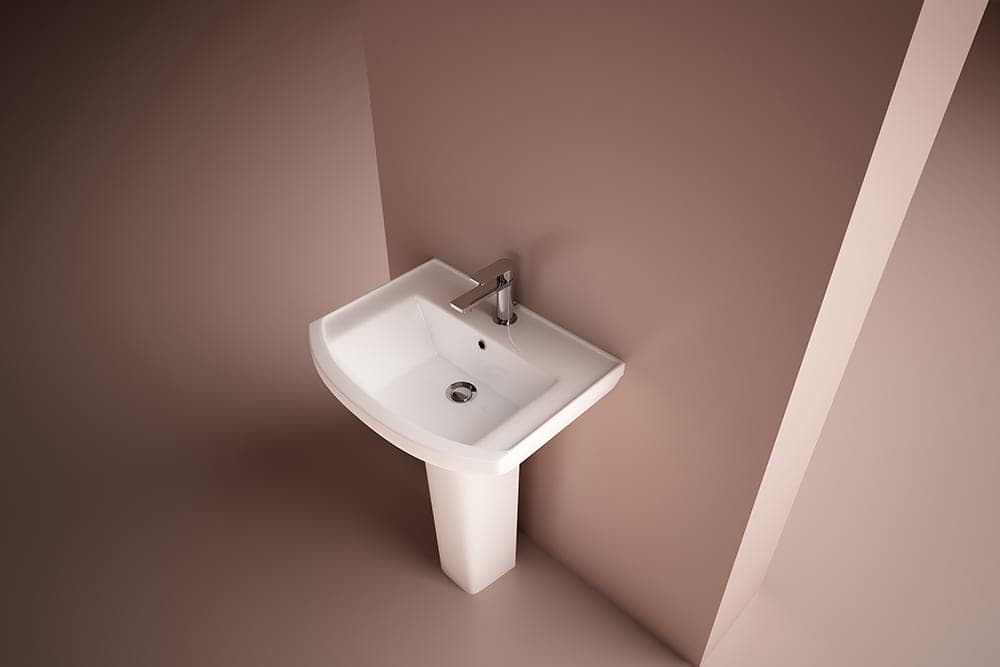

Full or semi-pedestal
Floor-standing or wall-hung basin installation.
03
Outlet options
Back-to-wall, floor-outlet and wall-outlet WCs.
04

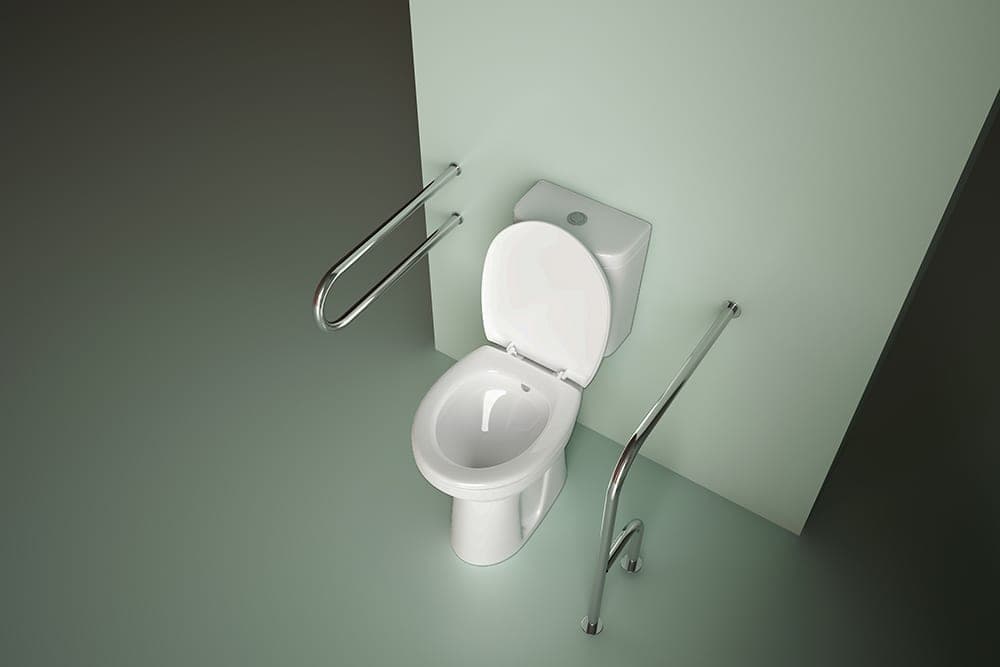

Accessible set
Disabled set for barrier-free washrooms.

Applications

Housing projects
Schools and dormitories
Healthcare facilities
Renovation of existing bathrooms

Specifications

Collections

IN-04.01

Models: Opal, Platin, Sedef, Disabled, Afacan

Opal

IN-04.02

5100+5212 · Washbasin + full pedestal, 60 cm: 600 × 480 × 210 mm · 16.1 kg (±5 %) · 16 pcs/pallet · 5212 full pedestal 170 × 190 × 700 mm · 10.7 kg (±5 %) · 48 pcs/pallet
5100+5211 · Washbasin + semi-pedestal, 60 cm: 600 × 480 × 210 mm · 16.1 kg (±5 %) · 16 pcs/pallet · 5211 semi-pedestal 300 × 255 × 265 mm · 7 kg (±5 %) · 60 pcs/pallet
5320+5550 · Semi back-to-wall WC + cistern: 30.50 kg (±5 %) · 18 pcs/pallet · bidet-spout version 5325 · cistern 12.90 kg (±5 %) · 54 pcs/pallet
5360+5550 · Back-to-wall WC + cistern: 640 × 355 mm · 28.4 kg (±5 %) · 14 pcs/pallet · bidet-spout version 5365 · 5550 cistern 140 × 370 × 365 mm · 12.8 kg (±5 %) · 54 pcs/pallet

Platin

IN-04.03

5111+5212 · Washbasin + full pedestal, 55 cm: 550 × 480 × 210 mm · 16.4 kg (±5 %) · 24 pcs/pallet · 5212 full pedestal 170 × 190 × 700 mm · 10.7 kg (±5 %) · 48 pcs/pallet
5111+5211 · Washbasin + semi-pedestal, 55 cm: 550 × 480 × 210 mm · 16.4 kg (±5 %) · 24 pcs/pallet · 5211 semi-pedestal 300 × 255 × 265 mm · 7 kg (±5 %) · 60 pcs/pallet
5390+5590 · WC, floor outlet: 375 × 660 mm · 18.3 kg (±5 %) · 13 pcs/pallet · bidet-spout version 5395 · 5590 cistern 290 × 280 × 165 mm · 13 kg (±5 %) · 54 pcs/pallet
5410+5590 · WC, wall outlet: 375 × 660 mm · 18.6 kg (±5 %) · 13 pcs/pallet · bidet-spout version 5495 · 5590 cistern 290 × 280 × 165 mm · 13 kg (±5 %) · 54 pcs/pallet

Sedef

IN-04.04

5150+5250 · Washbasin + full pedestal, 60 cm: 600 × 480 × 180 mm · 18.2 kg (±5 %) · 24 pcs/pallet · 5250 full pedestal 220 × 200 × 700 mm · 13.6 kg (±5 %) · 48 pcs/pallet
5150+5251 · Washbasin + semi-pedestal, 60 cm: 600 × 480 × 180 mm · 18.2 kg (±5 %) · 24 pcs/pallet · 5251 semi-pedestal 220 × 270 × 310 mm · 8.6 kg (±5 %) · 45 pcs/pallet
5340+5580 · Back-to-wall WC + cistern: 625 × 360 mm · 26.3 kg (±5 %) · 14 pcs/pallet · bidet-spout version 5345 · 5580 cistern 145 × 360 × 360 mm · 13.8 kg (±5 %) · 54 pcs/pallet

Disabled

IN-04.05

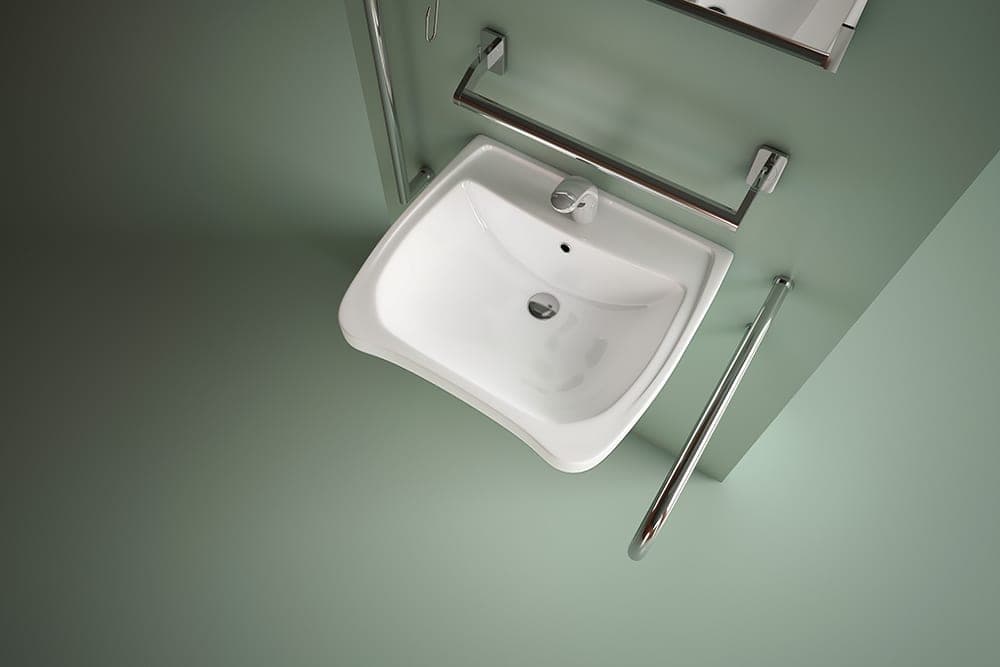

5160 · Washbasin, 60 cm: 600 × 550 × 205 mm · 18 kg (±5 %) · 10 pcs/pallet
5630+5590 · WC, floor outlet: 375 × 660 mm · 21 kg (±5 %) · 12 pcs/pallet · bidet-spout version 5635 · 5590 cistern 290 × 280 × 165 mm · 13 kg (±5 %) · 54 pcs/pallet

Afacan

IN-04.06

4010+5211 · Washbasin + semi-pedestal, 46 cm: 460 × 370 × 155 mm · 9.5 kg (±5 %) · 48 pcs/pallet · 5211 semi-pedestal 300 × 255 × 265 mm · 7 kg (±5 %) · 60 pcs/pallet
5600+5570 · WC, floor outlet: 550 × 310 mm · 18.6 kg (±5 %) · 8 pcs/pallet · bidet-spout version 5605 · 5570 cistern 175 × 315 × 1320 mm · 6.2 kg (±5 %) · 16 pcs/pallet
