IN-04 — Sanitary Ware

Furniture Basins

Basins sized for vanity units

Collections: 7
Widths: 45–120cm
White glaze: Gloss

01 — Overview

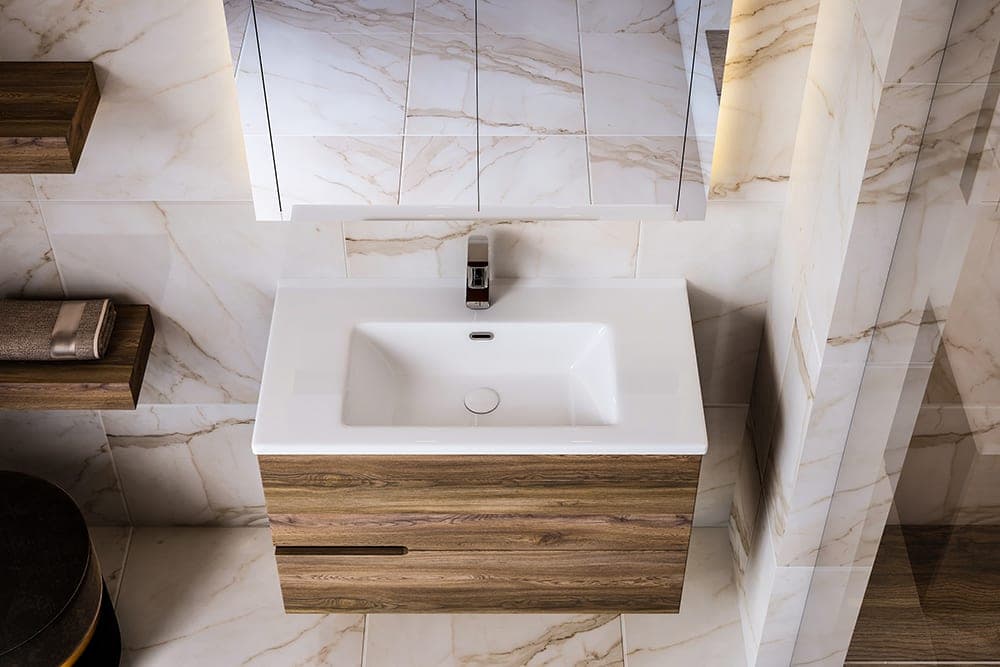

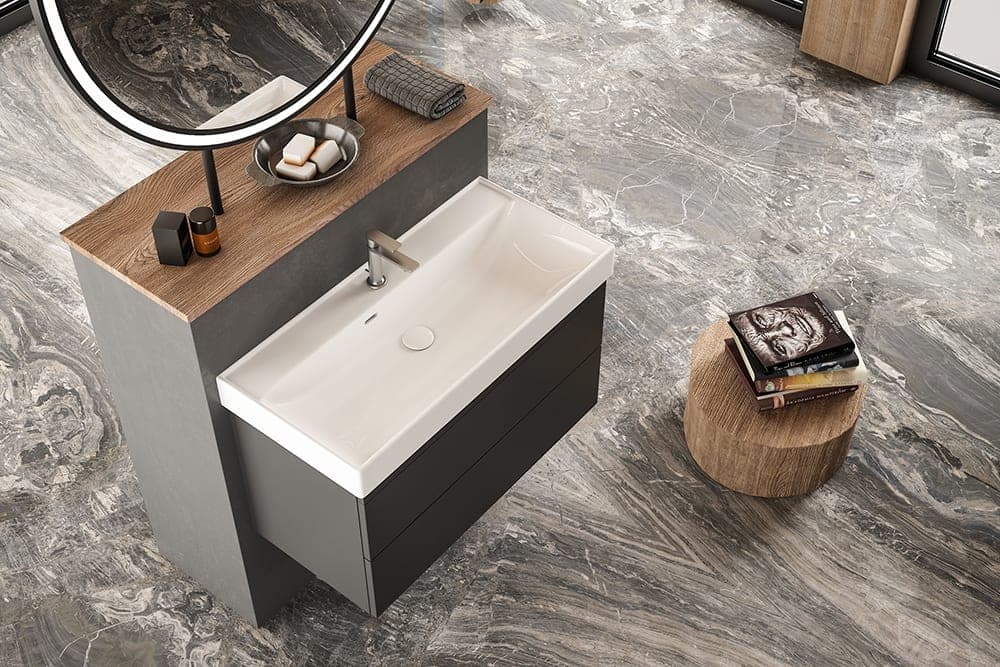

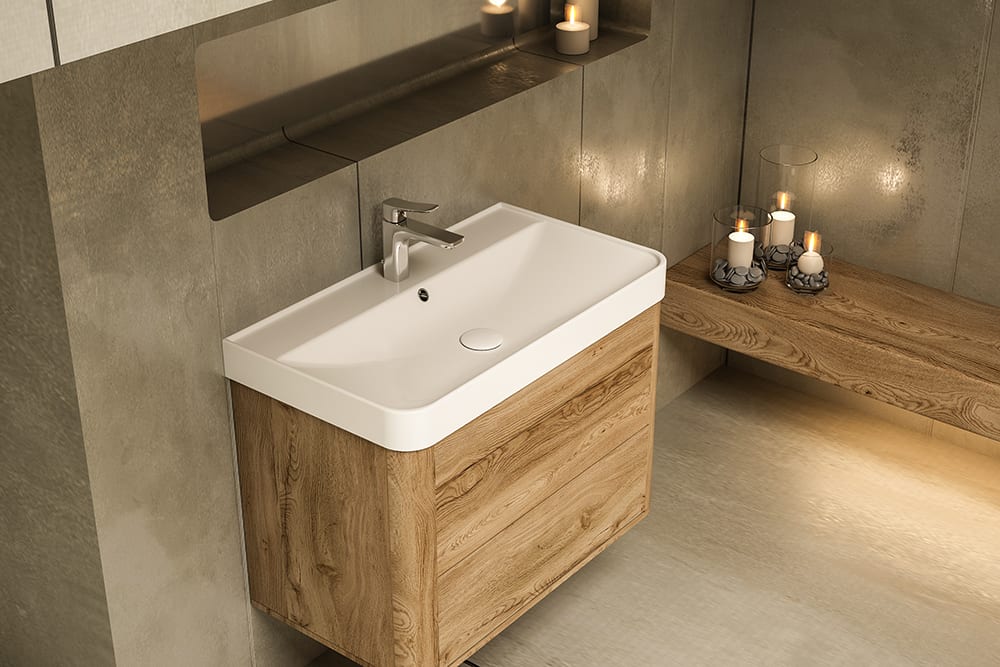

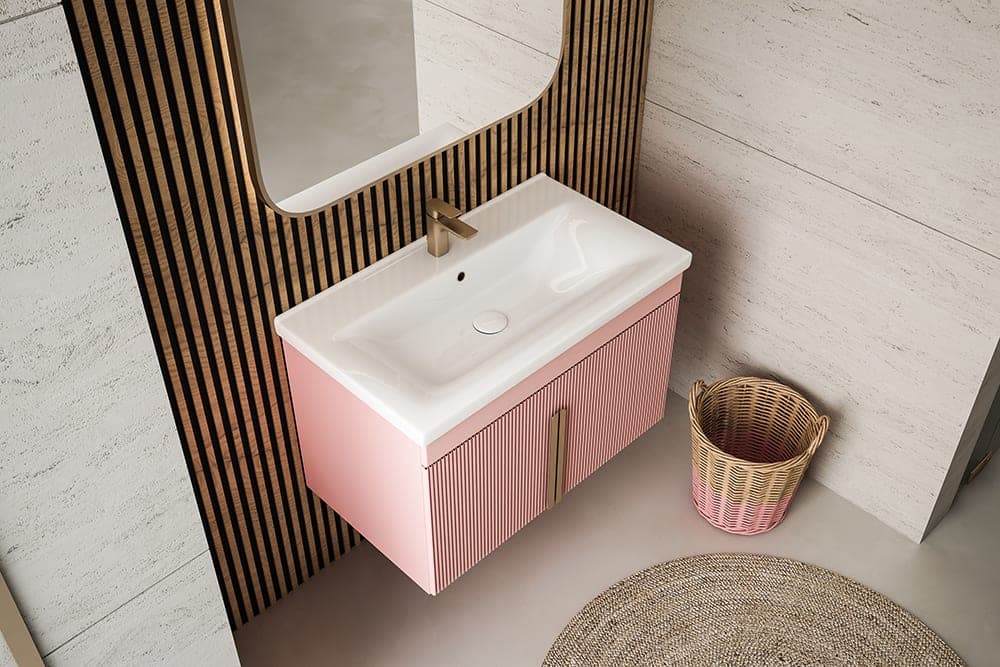

Furniture basins are the top of a vanity unit: a ceramic basin with an integrated worktop that sits directly on the cabinet. Seven collections cover the common cabinet widths, from a 45 cm cloakroom unit to a 120 cm double-width vanity.

Sava and Basic offer the widest choice of sizes, while Quattro, Etna and Zen give crisper, more architectural lines. Parla comes in six widths from 50 to 100 cm, and Avangarde suits classic, console-style furniture. All are supplied in gloss white.

Dimensions and pallet quantities are published for every width, which makes it easy to match basins to furniture produced locally or sourced separately.

Performance

01
Full width range
Common vanity widths from 45 to 120 cm.
02
Integrated worktop
Basin and top in one ceramic piece.
03
Contemporary and classic
Sharp-edged and softly rounded designs.
04
Easy to specify
Dimensions, weight and pallet quantity for every size.

Applications

Residential bathrooms
Hotel rooms
Housing developments
Furniture manufacturers

Specifications

Collections

IN-04.01

Models: Zen, Parla, Quattro, Etna, Avangarde, Sava, Basic

Zen

IN-04.02

3105 · Washbasin, 105 cm: 1020 × 510 × 195 mm (box) · 0.10 m³ · 27.10 kg (±5 %) · 24 pcs/pallet
3080 · Washbasin, 80 cm: 830 × 490 × 190 mm (box) · 0.077 m³ · 20.70 kg (±5 %) · 28 pcs/pallet
3060 · Washbasin, 60 cm: 625 × 490 × 180 mm (box) · 0.055 m³ · 16.00 kg (±5 %) · 36 pcs/pallet

Parla

IN-04.03

9900 · Washbasin, 100 cm: 1020 × 510 × 195 mm (box) · 0.10 m³ · 23.15 kg (±5 %) · 24 pcs/pallet
9980 · Washbasin, 80 cm: 825 × 430 × 182 mm (box) · 0.065 m³ · 18.25 kg (±5 %) · 30 pcs/pallet
9965 · Washbasin, 65 cm: 690 × 440 × 180 mm (box) · 0.055 m³ · 15.30 kg (±5 %) · 30 pcs/pallet
9960 · Washbasin, 60 cm: 620 × 430 × 185 mm (box) · 0.049 m³ · 13.75 kg (±5 %) · 36 pcs/pallet
9955 · Washbasin, 55 cm: 570 × 430 × 185 mm (box) · 0.045 m³ · 13.23 kg (±5 %) · 40 pcs/pallet
9950 · Washbasin, 50 cm: 530 × 430 × 200 mm (box) · 0.046 m³ · 12.38 kg (±5 %) · 44 pcs/pallet

Quattro

IN-04.04

8120 · Washbasin, 120 cm: 1200 × 450 × 190 mm · 0.11 m³ · 32.7 kg (±5 %) · 16 pcs/pallet
8100 · Washbasin, 100 cm: 1000 × 450 × 190 mm · 0.095 m³ · 25.3 kg (±5 %) · 24 pcs/pallet
8080 · Washbasin, 80 cm: 800 × 450 × 190 mm · 0.081 m³ · 21.3 kg (±5 %) · 24 pcs/pallet
8060 · Washbasin, 60 cm: 600 × 380 × 190 mm · 0.061 m³ · 14.8 kg (±5 %) · 30 pcs/pallet

Etna

IN-04.05

1100 · Washbasin, 100 cm: 1000 × 450 × 165 mm · 0.095 m³ · 25.2 kg (±5 %) · 24 pcs/pallet
1085 · Washbasin, 85 cm: 850 × 450 × 165 mm · 0.088 m³ · 22 kg (±5 %) · 24 pcs/pallet
1075 · Washbasin, 75 cm: 750 × 450 × 165 mm · 0.081 m³ · 19.3 kg (±5 %) · 24 pcs/pallet
1065 · Washbasin, 65 cm: 650 × 450 × 165 mm · 0.069 m³ · 16.3 kg (±5 %) · 24 pcs/pallet
1055 · Washbasin, 55 cm: 550 × 450 × 165 mm · 0.062 m³ · 15 kg (±5 %) · 32 pcs/pallet

Avangarde

IN-04.06

14080 · Washbasin, 80 cm: 800 × 500 × 190 mm · 0.08 m³ · 24.1 kg (±5 %) · 8 pcs/pallet

Sava

IN-04.07

2120 · Washbasin, 120 cm: 1220 × 480 × 820 mm (box) · 0.48 m³ · 33.40 kg (±5 %) · 8 pcs/pallet
2100 · Washbasin, 100 cm: 1020 × 510 × 190 mm (box) · 0.099 m³ · 28.60 kg (±5 %) · 24 pcs/pallet
2090 · Washbasin, 90 cm: 940 × 520 × 190 mm (box) · 0.093 m³ · 24.30 kg (±5 %) · 24 pcs/pallet
2080 · Washbasin, 80 cm: 830 × 510 × 192 mm (box) · 0.081 m³ · 20.95 kg (±5 %) · 28 pcs/pallet
2070 · Washbasin, 70 cm: 740 × 510 × 200 mm (box) · 0.075 m³ · 19.25 kg (±5 %) · 28 pcs/pallet
2065 · Washbasin, 65 cm: 680 × 510 × 192 mm (box) · 0.067 m³ · 16.60 kg (±5 %) · 28 pcs/pallet
2060 · Washbasin, 60 cm: 630 × 500 × 205 mm (box) · 0.065 m³ · 16.60 kg (±5 %) · 36 pcs/pallet
2055 · Washbasin, 55 cm: 570 × 500 × 190 mm (box) · 0.054 m³ · 14.60 kg (±5 %) · 36 pcs/pallet
2050 · Washbasin, 50 cm: 530 × 430 × 200 mm (box) · 0.046 m³ · 13.00 kg (±5 %) · 40 pcs/pallet

Basic

IN-04.08

7100 · Washbasin, 100 cm: 1000 × 450 × 175 mm · 0.095 m³ · 23.1 kg (±5 %) · 24 pcs/pallet
7090 · Washbasin, 90 cm: 900 × 450 × 175 mm · 0.088 m³ · 19.8 kg (±5 %) · 24 pcs/pallet
7080 · Washbasin, 80 cm: 800 × 450 × 175 mm · 0.081 m³ · 18.5 kg (±5 %) · 24 pcs/pallet
7075 · Washbasin, 75 cm: 750 × 450 × 175 mm · 0.081 m³ · 17.7 kg (±5 %) · 24 pcs/pallet
7065 · Washbasin, 65 cm: 685 × 480 × 195 mm (box) · 0.064 m³ · 15.75 kg (±5 %) · 28 pcs/pallet
7060 · Washbasin, 60 cm: 630 × 500 × 205 mm (box) · 0.065 m³ · 15.50 kg (±5 %) · 36 pcs/pallet
7055 · Washbasin, 55 cm: 550 × 450 × 175 mm · 0.054 m³ · 11.8 kg (±5 %) · 32 pcs/pallet
7050 · Washbasin, 50 cm: 500 × 370 × 175 mm · 0.049 m³ · 10 kg (±5 %) · 40 pcs/pallet
7045 · Washbasin, 45 cm: 480 × 410 × 180 mm (box) · 0.035 m³ · 10.00 kg (±5 %) · 50 pcs/pallet
