ConceptWall 86
High execution speed
- Visible width
- 86mm
- Air permeability
- AE900
- Max. glass weight
- 300kg
01 — Overview
Overview
ConceptWall 86 is a curtain-wall system for large building projects. Its highly insulated aluminium profiles are easy to fabricate and install, making it an efficient, high-performance panel facade.
It can be built as a cassette facade on a traditional stick structure or as a unitised facade. Types include breathable and cassette glazed; designs include Functional and structural glazed, with a High Insulation version and options for hidden drainage, bullet resistance, motorisation, glass corners and sun shading.
02
Specifications
Performance
EX-06.01- Uf
- 1.9 W/m²K
- Air permeability
- AE900 (900 Pa)
- Water tightness
- RE1200 (1200 Pa)
- Wind load resistance
- 2000 Pa
- Acoustics Rw (C;Ctr)
- 41 (-2;-6) dB
- Burglar resistance
- RC2
Dimensions
EX-06.02- Visible width (inside / outside)
- 86 mm
- Mullion depth
- 6.5–120 mm
- Transom depth
- 26.8–144.5 mm
- Max. glass weight
- 300 kg
03
Documents
Gallery

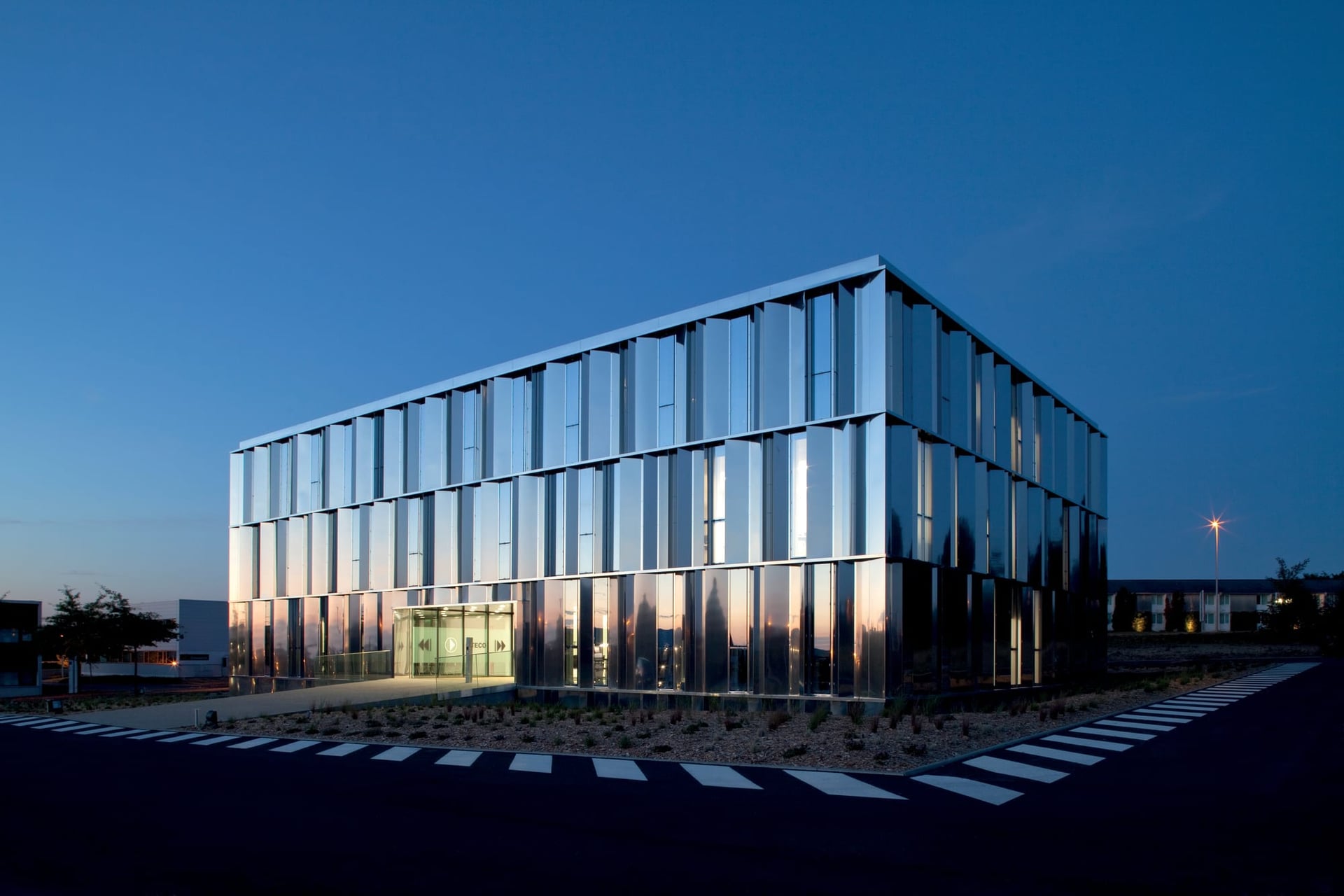

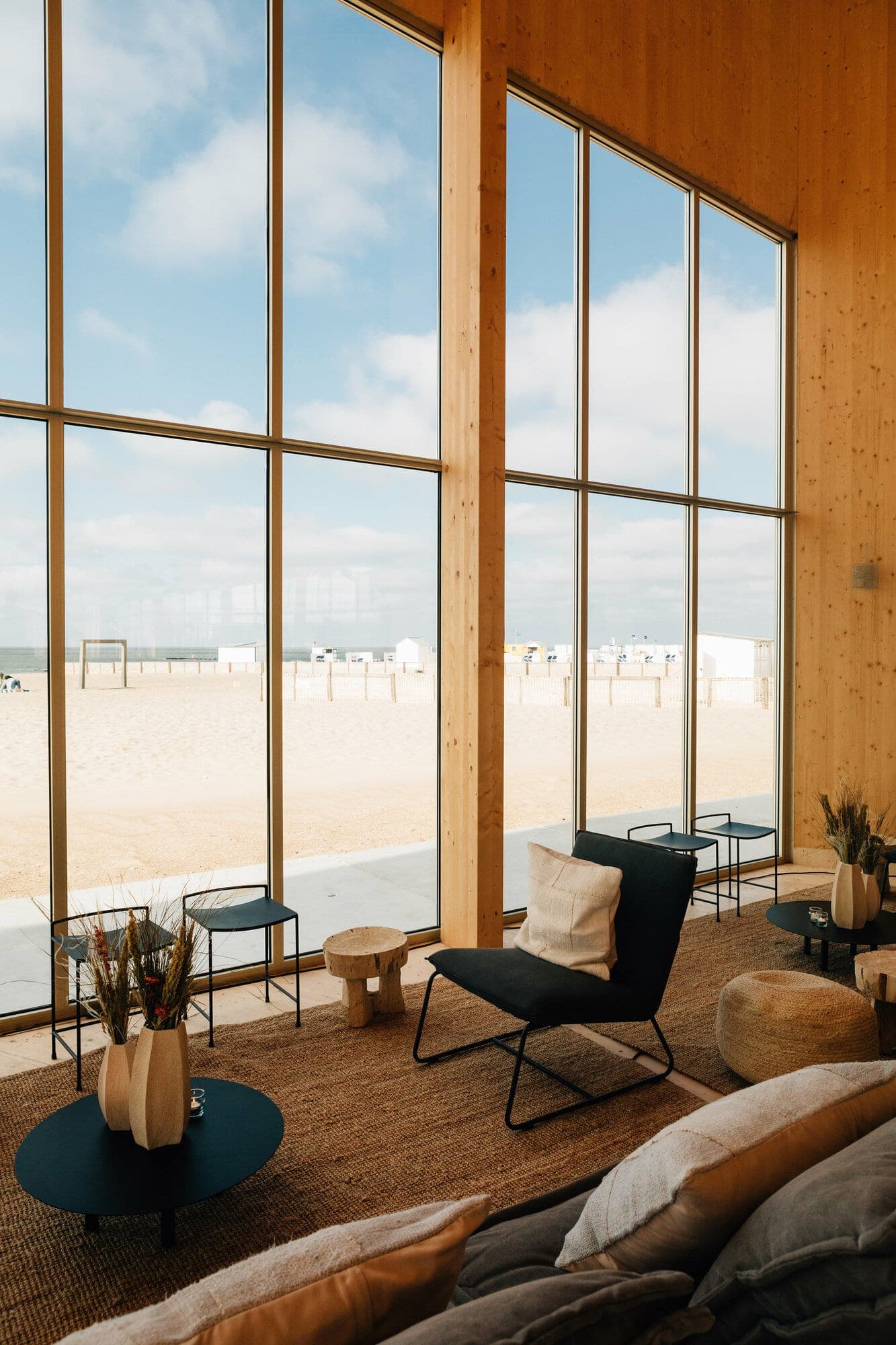

01 / 04

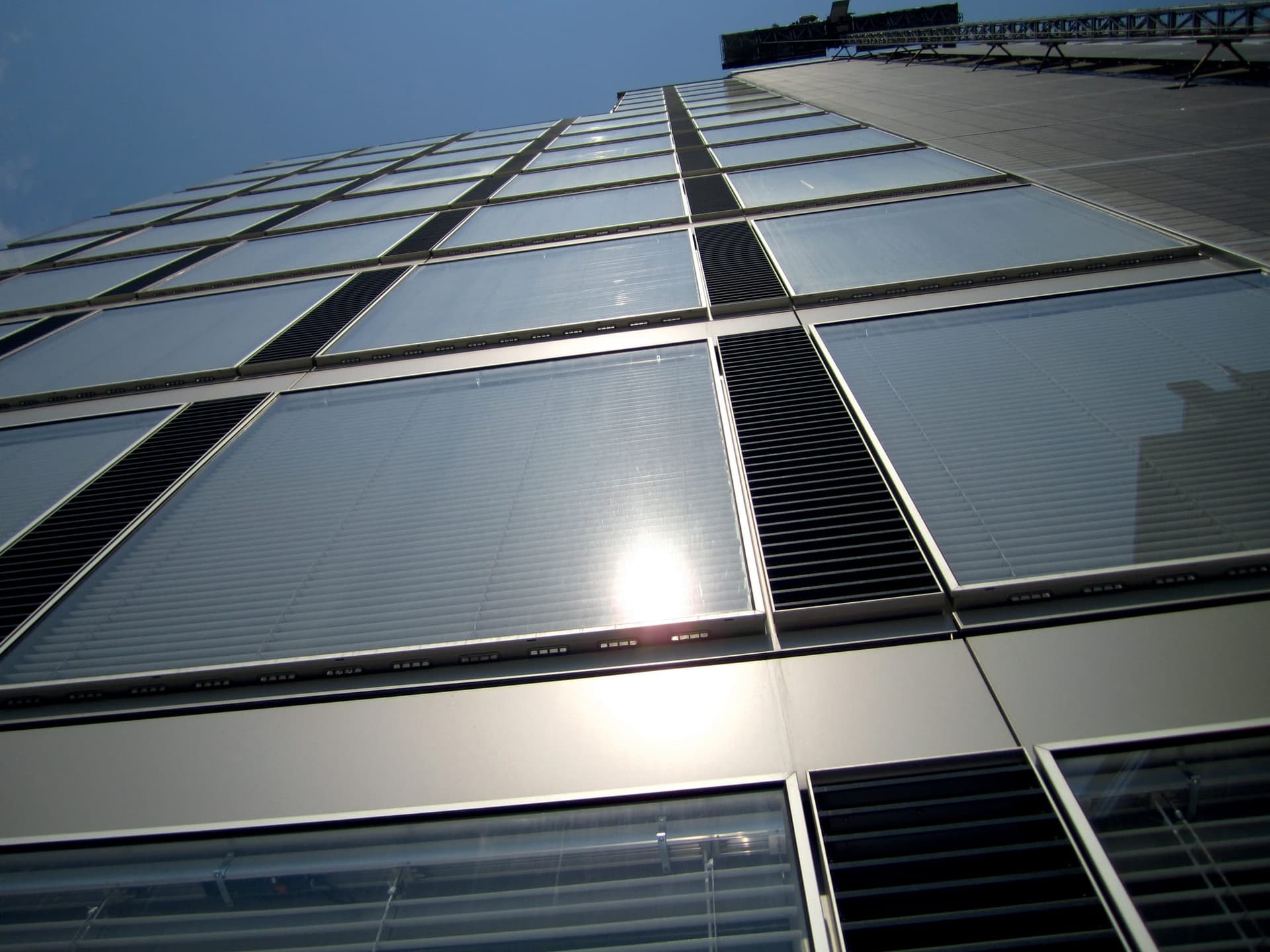

02 / 04

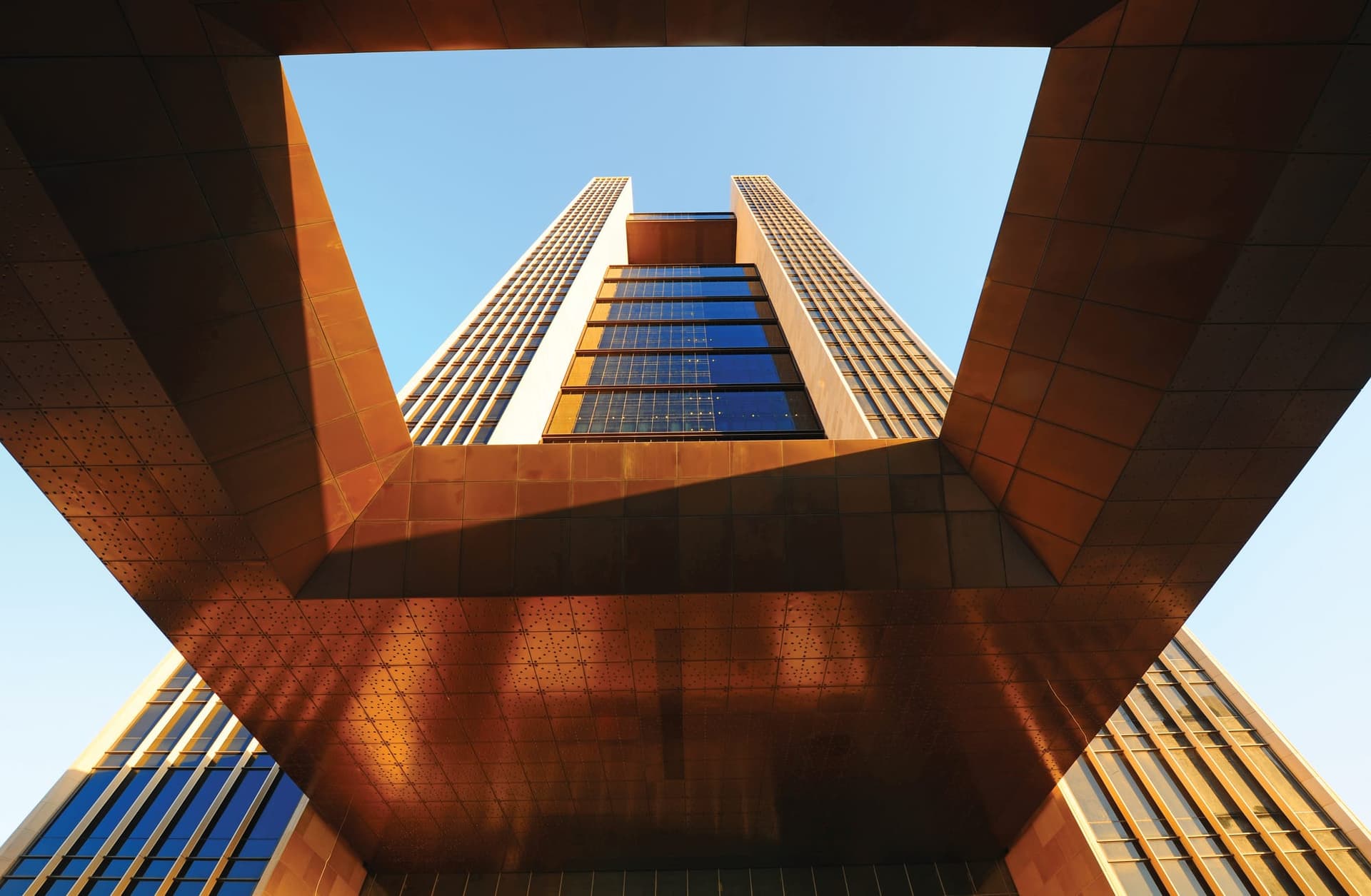

03 / 04

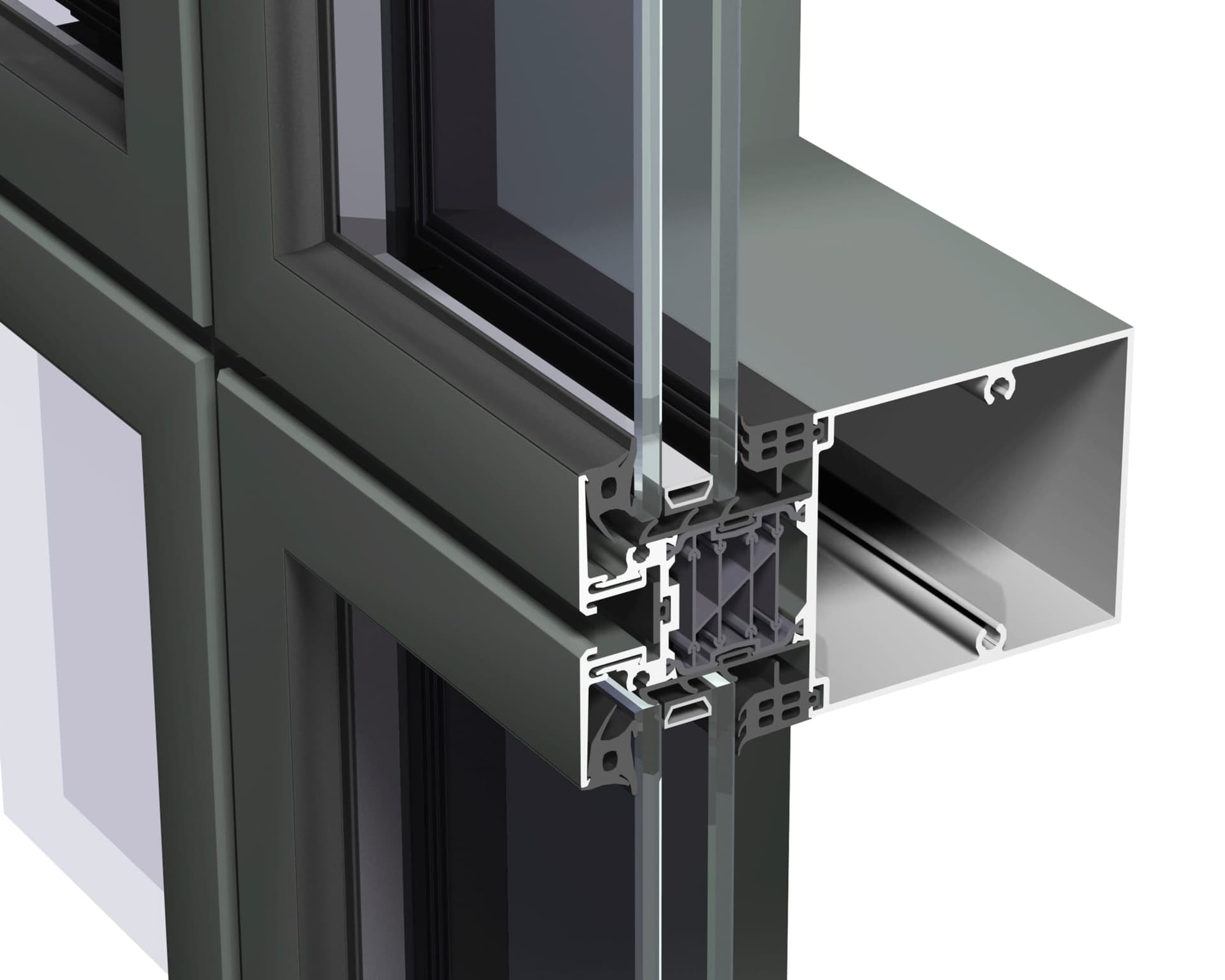

04 / 04
