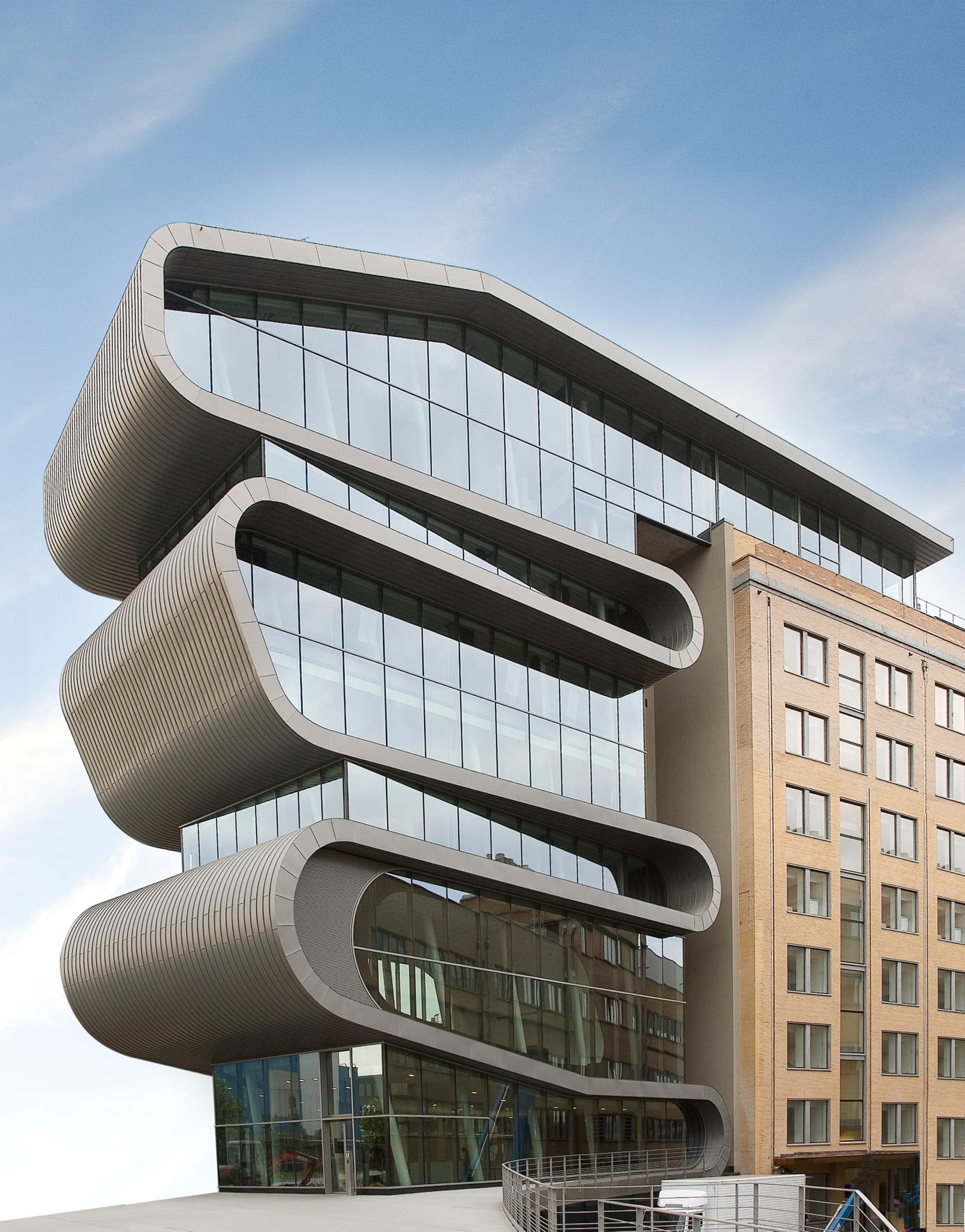

ConceptWall 60
The solution for heavy glass panes
- Uf
- 0.6W/m²K
- Rw
- 55dB
- Max. glass weight
- 750kg
01 — Overview
Overview
Compared with ConceptWall 50, ConceptWall 60 has stronger aluminium profiles and larger glazing beads, making it ideal where higher wind loads apply. Its functional design makes fabrication and installation equally easy.
Types include attic window, mullion–transom and opening elements; designs include horizontal and vertical lining, structural silicone and structural glazed, with a High Insulation version. Options include bullet resistance, integrated photovoltaic panels, sloped walls, roofs and sun shading.
02
Specifications
Performance
EX-06.01- Uf
- 0.6 W/m²K
- Air permeability
- AE1950 (1950 Pa)
- Water tightness
- RE1950 (1950 Pa)
- Wind load resistance
- 2400 Pa
- Acoustics Rw (C;Ctr)
- 55 (-2;-7) dB
- Burglar resistance
- RC2, RC3
Dimensions
EX-06.02- Visible width (inside / outside)
- 60 mm
- Mullion depth
- 62.5–251.5 mm
- Transom depth
- 67.2–214.3 mm
- Mullion inertia Ix
- 45–1940 cm⁴
- Max. glass weight
- 750 kg
03
Documents
Gallery

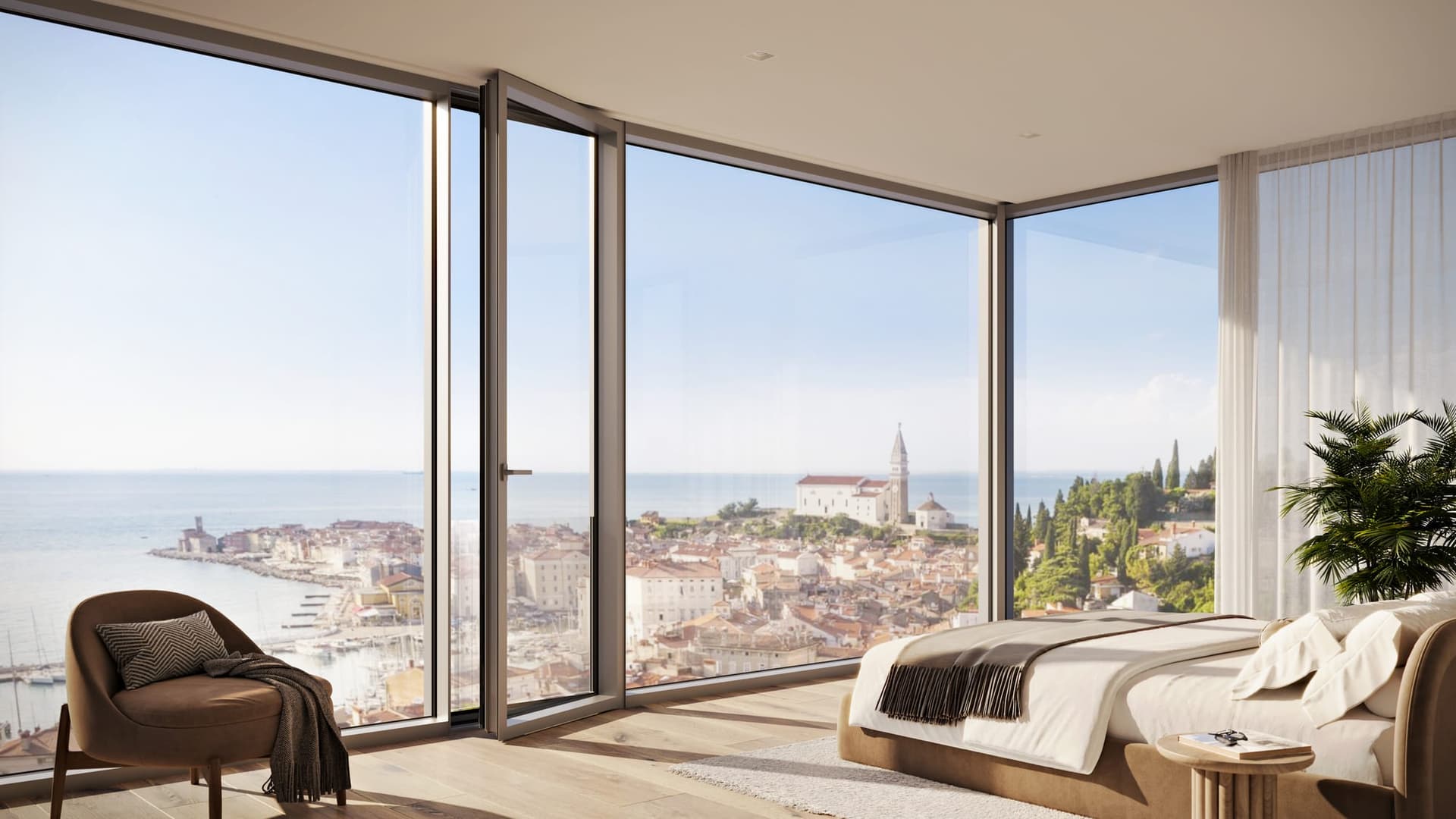

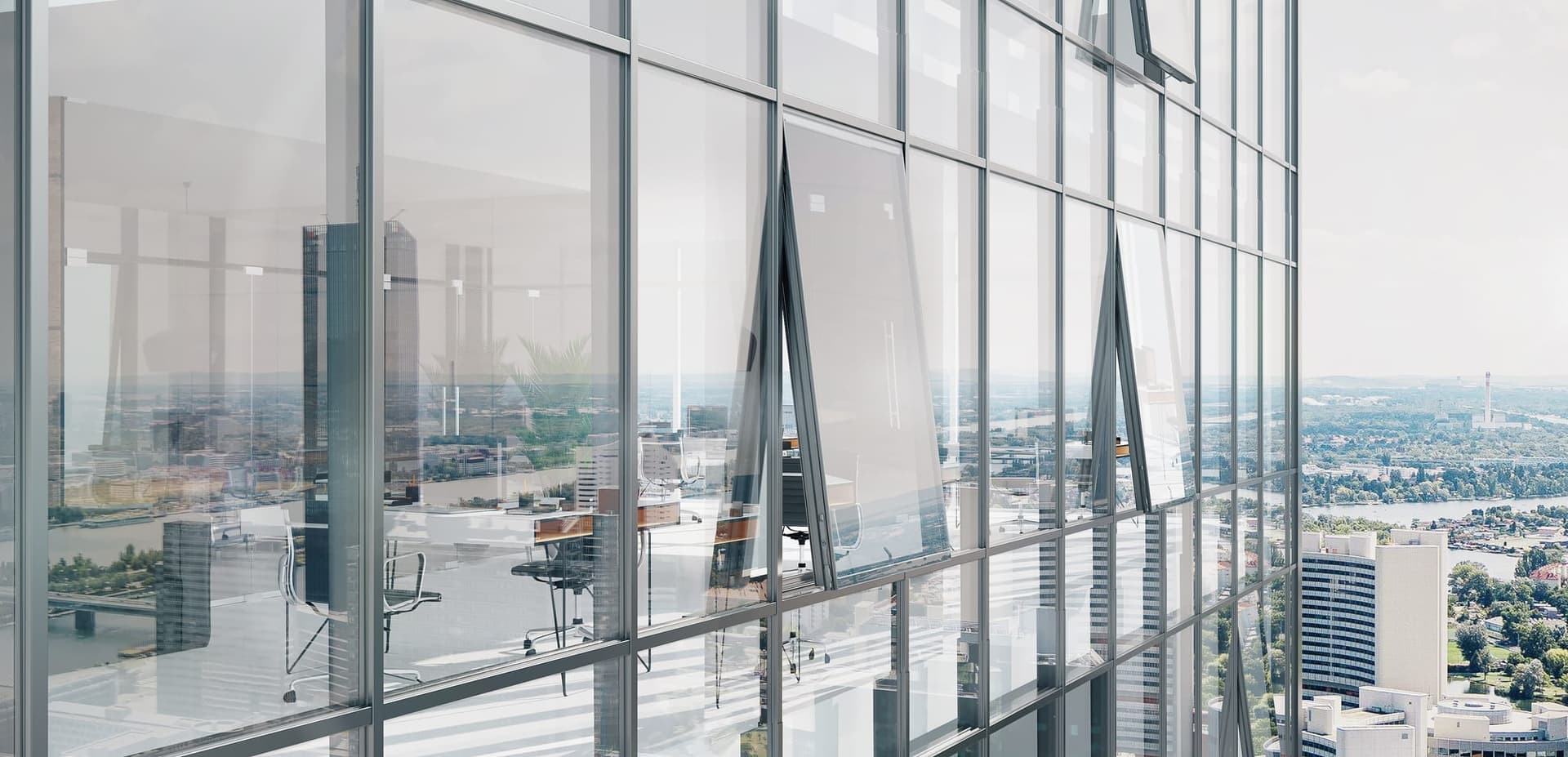

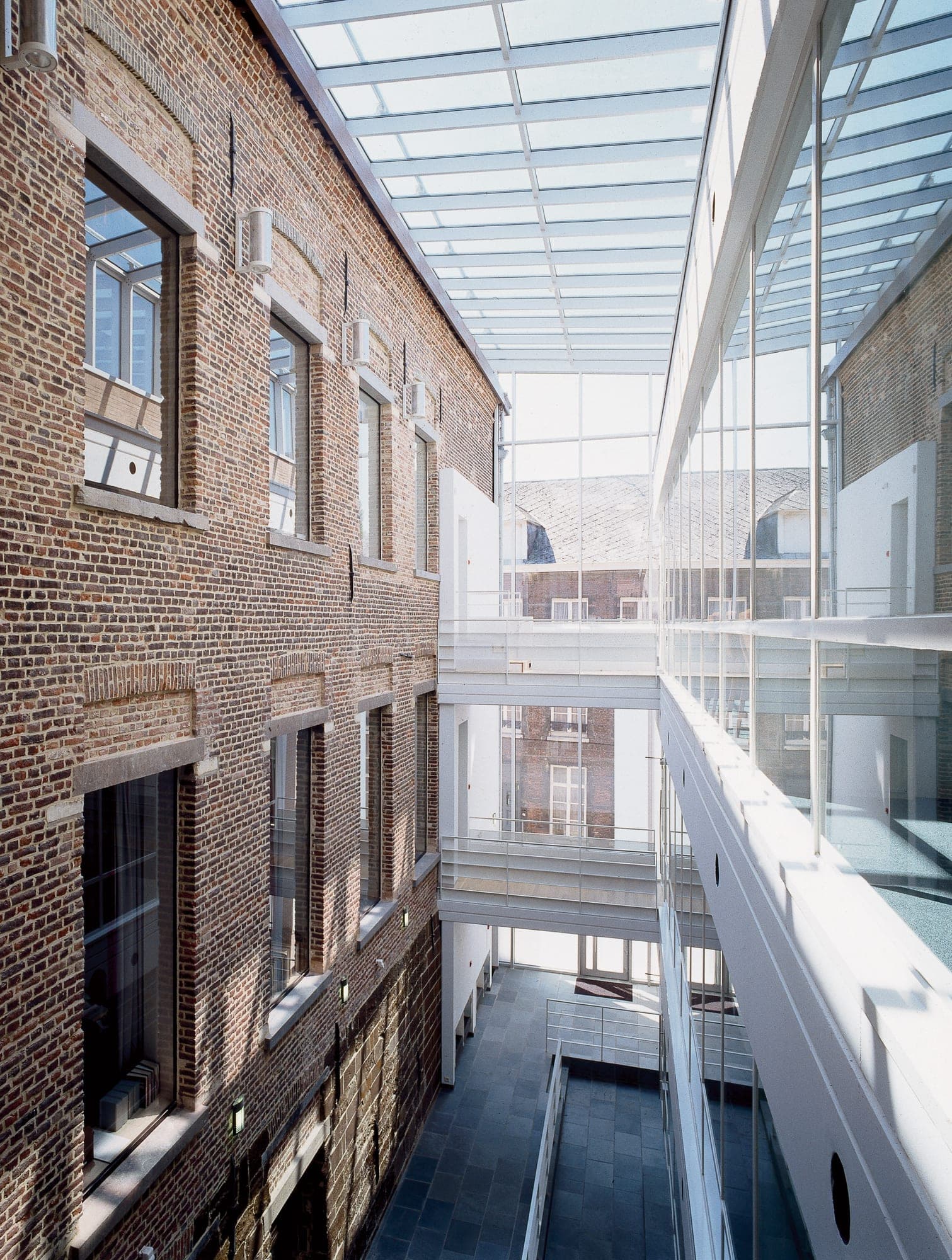

01 / 03
02 / 03
03 / 03
Sheet 09 — Enquiry
Specify ConceptWall 60.
Request catalogues, technical data sheets, samples or a quotation. Tell us about the project and the quantities involved.
