Plywood
Cross-laminated timber veneers bonded with phenol-formaldehyde glue: film-faced panels for formwork and plain plywood for furniture, interiors and industry.
- Thickness range
- 10–30mm
- Maximum sheet size
- 1250 × 2500mm
- Boiling water resistance
- 120h
Overview
01 — OverviewPlywood is built from thin wood veneers laid with their grain at right angles to each other and pressed together under high pressure. This cross-lamination makes a panel that is strong in every direction, stable and easy to work, and the phenol-formaldehyde (WBP) bond keeps it durable in humid and exterior conditions.
Film-faced panels are the workhorse of concrete formwork. Their strong, flexible build and high water resistance stand up to repeated pours, and their nail and screw holding is excellent. Pine, beech–pine and poplar–pine constructions offer density and strength comparable to birch, with 20 to 25 reuses per face; the hexagonal anti-slip version is made for floors.

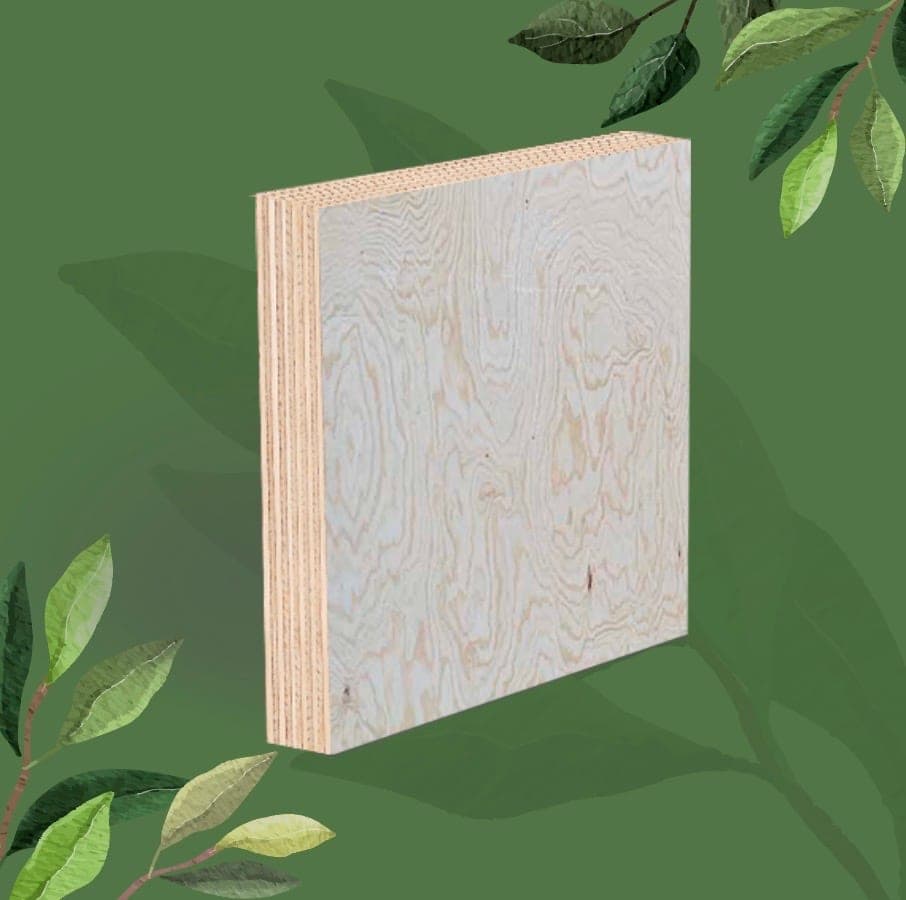

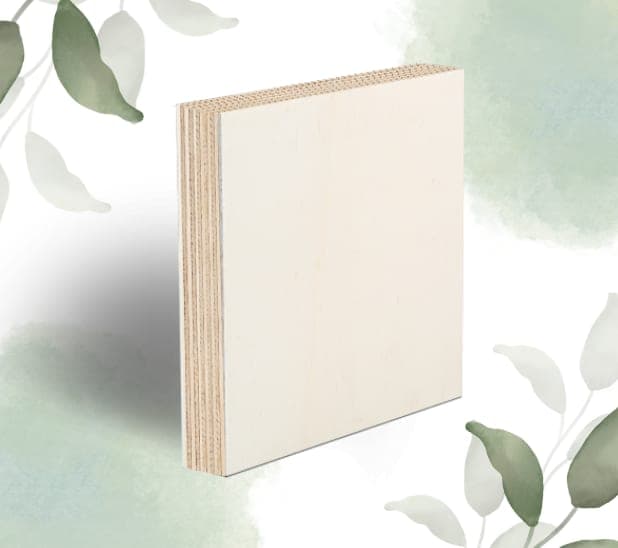

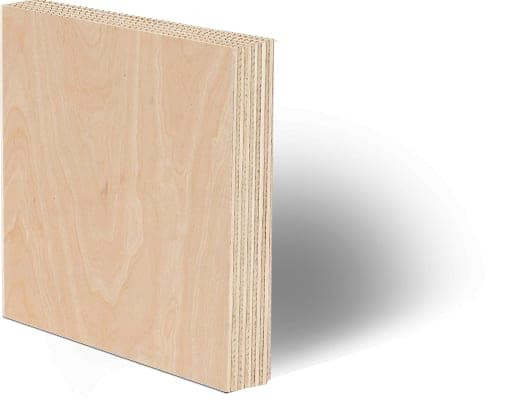

Plain plywood in beech, poplar, pine and mixed constructions serves furniture, roofing, cladding, packaging, automotive and boat building. It resists abrasion, tearing and crushing, does not shrink or swell, and its natural wood surface leaves room for a wide choice of finishes.
Plywood types
Film-faced panels for formwork and floors, and plain plywood in beech, poplar, pine and mixed constructions.

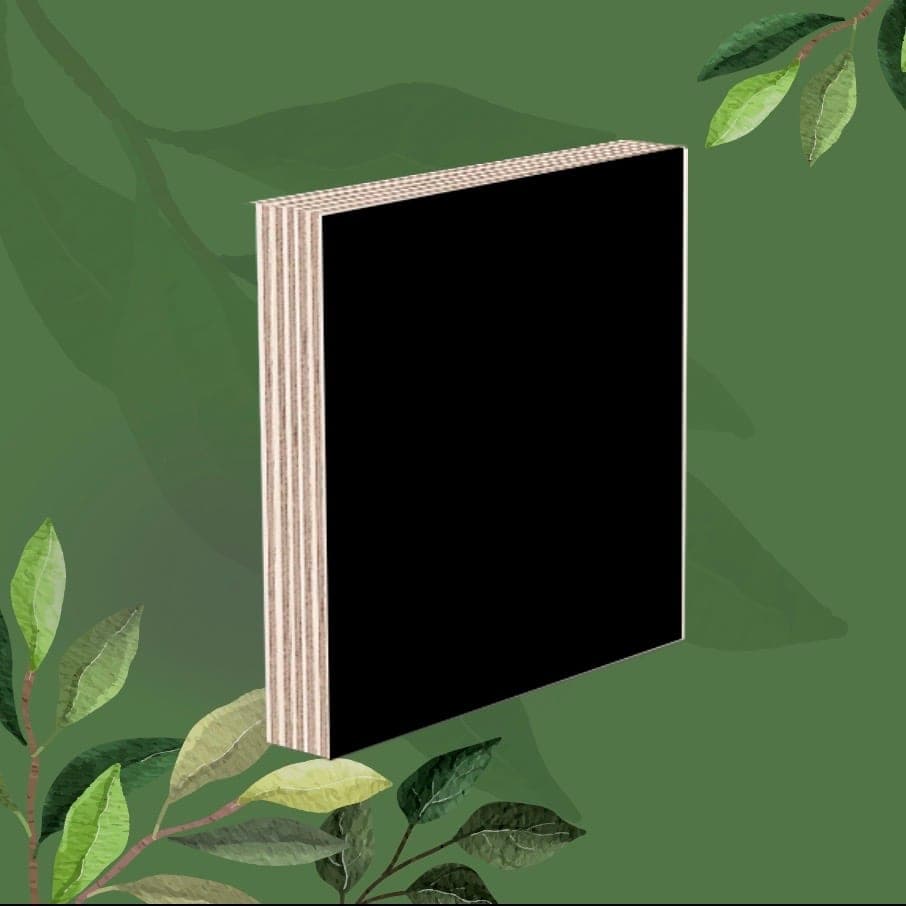

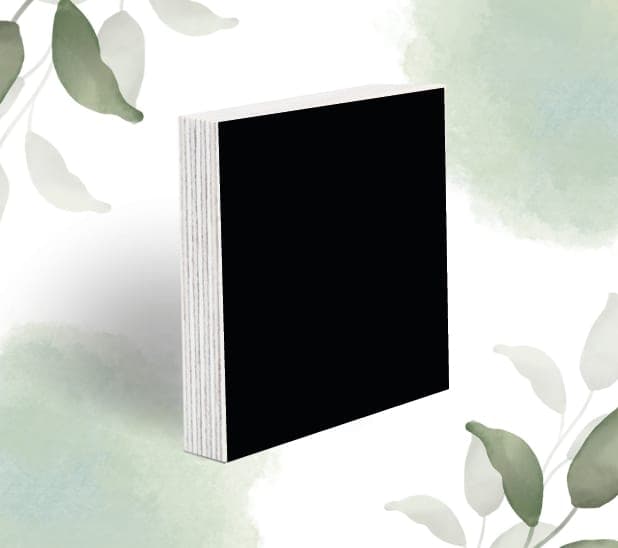

Film-faced plywood
4 lines
Performance
- 01
WBP phenolic bond
Phenol-formaldehyde glue for water and weather resistance.
- 02
Cross-laminated build
Veneers at right angles for strength in every direction.
- 03
Repeated formwork use
Film-faced panels rated for 20 + 20 or 25 + 25 uses.
- 04
Comparable to birch
Density and strength comparable to birch plywood.
- 05
Strong fixings
High nail and screw holding.
- 06
Dimensionally stable
Does not shrink or swell in use.
- 07

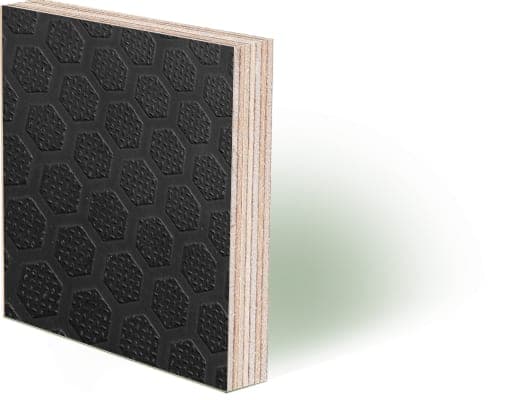

Anti-slip option
Hexagonal pattern surface for floors and platforms.
- 08
Easy to work
Cuts, drills and machines cleanly.
Applications
- A1Concrete formwork and scaffolding
- A2Roofs and interior partitions
- A3Trailer, container and warehouse floors
- A4Furniture and interiors
- A5Packaging and industry
- A6Boat and vehicle building
Specifications
Sheet
EX-11.01- Width
- 1220 – 1250 mm
- Length
- 2440 – 2500 mm
- Thickness
- 10 – 30 mm
- Construction
- Cross-laminated wood veneers
Bond and conformity
EX-11.02- Glue
- WBP, phenol-formaldehyde
- Boiling water
- Resists 120 hours (plain plywood)
- Standard
- TS EN 636
- Marking
- CE
- Formaldehyde
- U.S. EPA / CARB
Documents
Gallery
01 / 06
02 / 06
03 / 06
04 / 06
05 / 06
06 / 06
