EX-10 — Technical bricks
← Back to Bricks
Cable Protection Bricks
Solid brick over underground cables
- Solid format
- 22 × 10 × 6cm
- Solid format
- 25 × 12 × 6cm
- Brick type
- Solid
01 — Overview
Overview
Underground cables should not be laid directly in a trench: the chemicals in the soil shorten a cable's life. Brick is used as the protective layer.

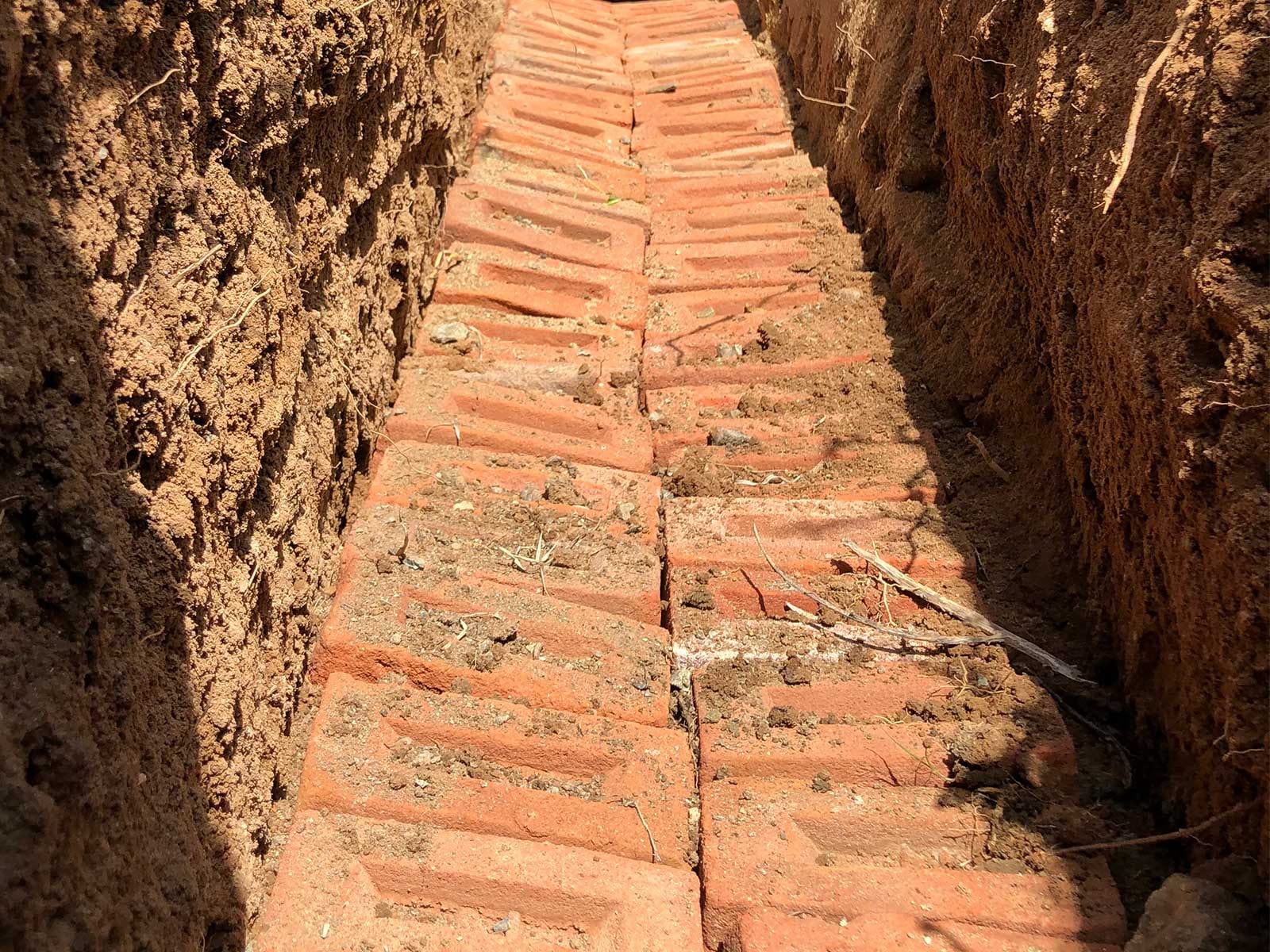

Solid bricks are laid along the full length of the cable on the sand bed above it, and between low-voltage and medium-voltage cables that share the same trench. The 22 cm and 25 cm solid formats are used.
02
Performance
- 01
Protective layer
Shields cables laid in the ground.
- 02
Separation
Separates LV and MV cables in a shared trench.
- 03
Full-length coverage
Laid continuously along the cable route.
03
Applications
- Power distribution trenches
- LV and MV cable routes
- Infrastructure projects
04
Specifications
Formats
EX-10.01- Solid 22
- 22 × 10 × 6 cm · 2.15 kg · 750 pcs/pallet
- Solid 25
- 25 × 12 × 6 cm · 3.15 kg · 500 pcs/pallet
